99.01.0.230.59 Finder Control Relays

99.01.0.230.59 on Powermatic Associates
Finder

Part#:99.01.0.230.59

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

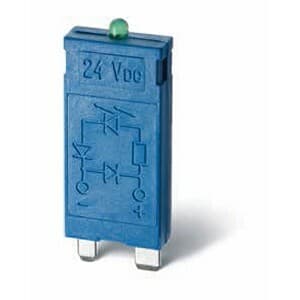

Finder 99.01.0.230.59 is a mounting accessory designed for use with a rated voltage range of 110-240Vdc and a control voltage range of 110-240Vac. It features a plug-in control voltage type and is identified by its blue power consumption indicator.

Product Details

  • Main function
    Mounting accessory
  • Compliant with standard(s)
    EAC
  • Color
    Blue
  • Technical compatibility with
    Series 40.31 Series 40.51 Series 40.52 Series 40.61 Series 95.65 Series 95.63 Series 60.12 Series 60.13 Series 90.20 Series 90.21 Series 56 Series 96.74 Series 96.72
  • Primary brand
    Finder
  • Rated voltage (AC)
    110-240Vac
  • Mounting mode
    Plug-in
  • Rated Voltage (DC)
    110-240Vdc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
