95.13.2 Finder Control Relays

95.13.2 on Powermatic Associates
Finder

Part#:95.13.2

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

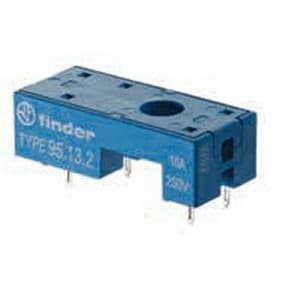

Finder 95.13.2 is a socket designed for solder pin connections, with a rated current of 12A and an IP20 speed rating. It is suitable for PCB applications, featuring a control voltage categorized under AC specifications. The part is colored blue and adheres to the EN61984 standard for its DC output voltage.

Product Details

  • Color
    Blue
  • Technical compatibility with
    Series 40.31
  • Rated current
    12A
  • Compliant with standard(s)
    cURus CSA EAC CE EN 60664-1 EN 61984
  • Main function
    Socket
  • Degree of protection
    IP20
  • Primary brand
    Finder
  • Connection type
    Solder pin
  • Mounting mode
    PCB
  • Mounting location
    EN61984

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

95.13.2 Related Documents

Finder - 41 Series - Catalogue.pdf
