90.21SMA Finder Control Relays

90.21SMA on Powermatic Associates
Finder

Part#:90.21SMA

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

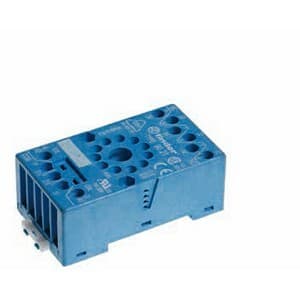

Finder 90.21SMA is a socket designed for DIN rail or panel mounting, featuring a box-clamp connection type. It supports a rated current of 10A and adheres to the EN61984 standard for output voltage (DC). The control voltage operates on AC, and the product is identified by its blue power consumption indicator.

Product Details

  • Main function
    Socket
  • Mounting location
    EN61984
  • Primary brand
    Finder
  • Compliant with standard(s)
    cURus IMQ CSA VDE EAC CE EN 60664-1 EN 60715 EN 61984
  • Color
    Blue
  • Connection type
    Box-clamp
  • Mounting mode
    DIN rail Panel
  • Rated current
    10A
  • Technical compatibility with
    Series 60.13 Series 99.01

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

90.21SMA Related Documents

Finder - 60 Series - Catalogue.pdf
