Powermatic Associates Logo

60.13.8.024.0030 Finder Control Relays

60.13.8.024.0030 on Powermatic Associates
Finder

Part#:60.13.8.024.0030

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

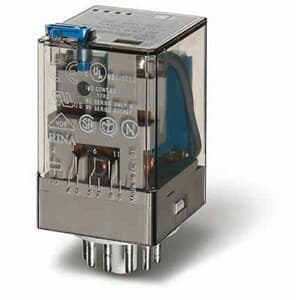

Product description

Finder 60.13.8.024.0030 is a relay with a solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.4A at 110Vdc and 0.15A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures for operation and storage of -40 to +70 degrees Celsius. The relay supports a rated voltage of 250Vac, with a control voltage of 3.6 kV and a power consumption of 1.3W. It is designed for plug-in mounting with an 11-pin configuration and has a net depth of 66.7mm, a mounting mode width of 32.5mm, and a power consumption height of 36.4mm. The relay is rated for 200,000 operations for Normally Closed (NC) circuits and 20,000,000 operations overall, with a response time of 1.3W. The contact material is AgNi (Silver Nickel), indicating the composition of the relay's contacts.

Product Details

  • Poles
    3 Pole(s)
  • Electrical durability (with load)
    200 000 operations
  • Net Height (mm)
    66.7 mm
  • Product series / family name
    60 series
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1) 1.3W
  • Power consumption
    1.3 W
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    Plug-in (11-pins)
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Depth (mm)
    36.4 mm
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.4A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Net Width (mm)
    32.5 mm
  • Connection type
    Solder pin
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated impulse voltage (Uimp)
    3.6 kV
  • Mechanical durability (at no load)
    20 000 000 operations
  • Main function
    Relay
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 61000-4-5 EN 61810-1
  • Primary brand
    Finder

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

60.13.8.024.0030 Related Documents

Finder - 60 Series - Catalogue.pdf
