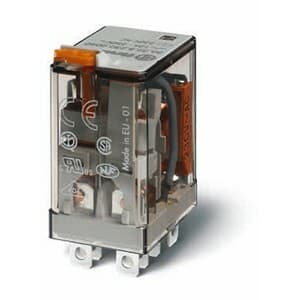

56.32.8.120.0030 Finder Control Relays

56.32.8.120.0030 on Powermatic Associates
Finder

Part#:56.32.8.120.0030

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 56.32.8.120.0030 is a relay with a connection type of Fast-on 187, designed to handle rated currents of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for both operation and storage. The relay supports a communication protocol of type C and offers protection functions at 250Vac, with a control voltage (AC) of 4 kV. It is rated for an active power of 2 poles, with a color coding for 120Vac (50Hz/60Hz) operations. The design includes plug-in residual current sensitivity, and it is capable of 100,000 operations for Normally Closed (NC) circuits, with a material composition of AgNi (Silver Nickel) for durability, supporting up to 20,000,000 operations.

Product Details

  • Poles
    2 Pole(s)
  • Main function
    Relay
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Control Voltage (AC)
    120Vac (50Hz/60Hz)
  • Product series / family name
    56 series
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Electrical durability (with load)
    100 000 operations
  • Rated impulse voltage (Uimp)
    4 kV
  • Connection type
    Fast-on 187
  • Mounting mode
    Plug-in
  • Ambient air temperature for operation
    -40...+70 °C
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi (Silver Nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

56.32.8.120.0030 Related Documents

Finder - 56 Series - Catalogue.pdf
