41.61.9.024.4010 Finder Control Relays

41.61.9.024.4010 on Powermatic Associates
Finder

Part#:41.61.9.024.4010

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 41.61.9.024.4010 is a relay with solder pin connection type, designed for a rated current of 16A at 250Vac (AC-1) and 16A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay supports a communication protocol of type C, has a net width of 24Vdc, and offers protection functions at 250Vac. Its net depth is 15.7 mm, with a control voltage of 6 kV, and it is designed for PCB or plug-in mounting with a length of 29 mm. The rated active power is for 1 Pole(s), with a power consumption width of 12.6 mm. It is designed for up to 50,000 operations for Normally Closed (NC) circuits and has a durability of 10,000,000 operations. The contact material is AgSnO2 (Silver / Tin Oxide).

Product Details

  • Product series / family name
    41 series
  • Mounting mode
    PCB Plug-in
  • Electrical durability (with load)
    50 000 operations
  • Contacts coating
    AgSnO2 (Silver / Tin Oxide)
  • Rated current
    16A (250Vac; AC-1) 16A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Connection type
    Solder pin
  • Main function
    Relay
  • Poles
    1 Pole(s)
  • Degree of protection
    RT II
  • Net Height (mm)
    15.7 mm
  • Rated voltage (AC)
    250Vac
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Net Width (mm)
    29 mm
  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1)
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Depth (mm)
    12.6 mm
  • Mechanical durability (at no load)
    10 000 000 operations
  • Control Voltage (DC)
    24Vdc
  • Compliant with standard(s)
    cURus RINA IMQ VDE EAC EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61810-1 EN 62314
  • Ambient air temperature for operation
    -40...+85 °C
  • Primary brand
    Finder

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

41.61.9.024.4010 Related Documents

Finder - 41 Series - Catalogue.pdf

Similar products from: Finder Control Relays

55.32.8.120.0040 on Powermatic Associates

55.32.8.120.0040

Finder

Finder 55.32.8.120.0040 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), with an ambient air temperature for operation of 500VA at 230Vac and for storage at AC-15 of 2500VA at 250Vac. The rated voltage for AC operation is specified with a wide ambient temperature range of -40 to +85 degrees Celsius. It utilizes a communication protocol labeled as C and offers protection functions at 250Vac. The net depth of the part is 37.2 mm, with a control voltage (AC) of 4 kV and mounting mode dimensions of 27.7 mm by 20.7 mm. The rated active power is for 2 poles, and the power consumption is specified for a color code of 120Vac (50Hz/60Hz). The relay features plug-in mounting with a residual current sensitivity, and it is designed for up to 200,000 operations for Normally Closed (NC) circuits and a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

15 in stock
55.33.9.024.0010 on Powermatic Associates

55.33.9.024.0010

Finder

Finder 55.33.9.024.0010 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and is specified for 500VA at 230Vac and 2500VA at 250Vac in terms of rated active power. The rated voltage for AC operations is 250Vac, with a control voltage tolerance of 4 kV. This relay features a net depth of 37.2 mm, a mounting mode width of 27.7 mm, and a power consumption depth of 20.7 mm. It is designed for plug-in mounting, supports up to 200,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

10 in stock
40.52.7.024.0000 on Powermatic Associates

40.52.7.024.0000

Finder

Finder 40.52.7.024.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +85 degrees Celsius for both operation and storage. This relay has a rated voltage of 250Vac, a control voltage of 6 kV, and is designed for PCB or plug-in mounting. It features a net width of 29 mm, a net depth of 25 mm, and a power consumption of 0.5 W. The visual position indicator has a 5.3mm pins pitch, and the relay is capable of 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The relay's poles are rated for 24Vdc, with a protection function of 250Vac, and it has a response time of 0.5 W.

7 in stock
55.32.8.024.0040 on Powermatic Associates

55.32.8.024.0040

Finder

Finder 55.32.8.024.0040 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1), 10A at 30Vdc (DC-1), 0.25A at 110Vdc (DC-1), and 0.12A at 220Vdc (DC-1) with Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage of -40 to +85 degrees Celsius. The relay has a rated voltage for AC operations, a communication protocol of type C, and includes protection functions at 250Vac. Its dimensions are specified with a net depth of 37.2 mm, a mounting mode width of 27.7 mm, and a power consumption length of 20.7 mm. The control voltage (AC) is rated at 4 kV, and it supports a rated active power of 2 poles. The relay is designed for plug-in mounting, has a color code of 24Vac (50Hz/60Hz), and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

10 in stock
060.48 on Powermatic Associates

060.48

Finder

Sheet of marker tags for thermal transfer prt. - Finder

19 in stock
095.91.3 on Powermatic Associates

095.91.3

Finder

Finder 095.91.3 is a mounting accessory designed for use in automation systems. It features a blue power consumption indicator, signifying its operational status and power usage.

10 in stock

Manufacturer warranty

41.61.9.024.4010 Finder

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 41.61.9.024.4010 with other Control Relays products

Product series / family n...

Mounting mode

Electrical durability (wi...

Contacts coating

Rated current

Connection type

Main function

Poles

Degree of protection

Net Height (mm)

Selected product

41.61.9.024.4010
Backordered
41.61.9.024.4010
Finder

Finder 41.61.9.024.4010 is a relay with solder pin connection type, designed for a rated current of ...

Product series / family name41 series

Mounting modePCB Plug-in

Electrical durability (with load)50 000 operations

Contacts coatingAgSnO2 (Silver / Tin Oxide)

Rated current16A (250Vac; AC-1) 16A (30Vd...

Connection typeSolder pin

Main functionRelay

Poles1 Pole(s)

Degree of protectionRT II

Net Height (mm)15.7 mm

40.61.8.120.0000
10 in stock
40.61.8.120.0000
Finder

Finder 40.61.8.120.0000 is a relay with a solder pin connection type, designed for a rated current o...

Product series / family name40 series

Mounting modePCB Plug-in

Electrical durability (with load)-

Contacts coating-

Rated current16A (250Vac; AC-1) 16A (30Vd...

Connection typeSolder pin

Main functionRelay

Poles1 Pole(s)

Degree of protectionRT II

Net Height (mm)-

34.51.7.024.0010
4 in stock
34.51.7.024.0010
Finder

Finder 34.51.7.024.0010 is a relay with a solder pin connection type, designed for various rated cur...

Product series / family name34 series

Mounting modePCB Plug-in

Electrical durability (with load)-

Contacts coating-

Rated current6A (250Vac; AC-1) 3A (30Vdc;...

Connection typeSolder pin

Main functionRelay

Poles1 Pole(s)

Degree of protectionRT II

Net Height (mm)-

About the manufacturer

Finder

Powermatic Associates is an authorized Finder distributor, proudly bringing you a diverse range of innovative products from this leading manufacturer renowned for its excellence in industrial automation and control solutions. With over 65 years of experience, Finder specializes in the design and production of high-quality electromechanical and electronic components tailored to meet diverse industr...

Recently viewed products

Relevant products

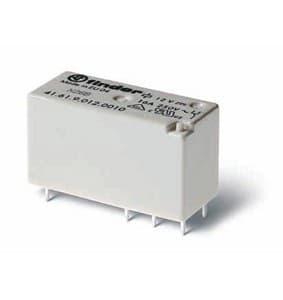

41.61.9.012.0010 on Powermatic Associates
