8606 Festo Pneumatic Control Systems

8606 on Powermatic Associates
Festo

Part#:8606

Alt. Part#:PZA-E-C

Manufacturer:Festo

Category:Pneumatic Control Systems

Product Lifecycle:Active

Product description

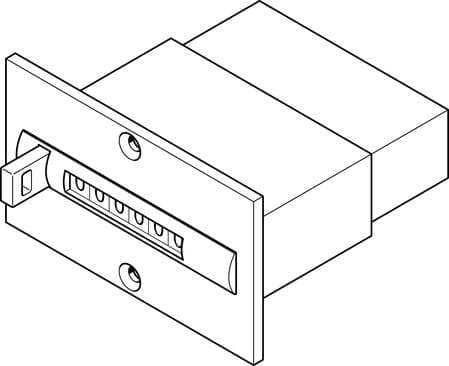

adding counter PZA-E-C Design structure: mechanical sequence counter with pneumatic drive, Type of reset: Pushbutton or pneumatic signal, Display: 6-place, Release pressure, drive unit: < 0,15 bar, Release pressure, return: < 0,15 bar

Product Details

  • Min. pulse length for reset
    150 ms
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Type of mounting
    Front panel mounting
  • Type code
    PZA
  • Actuator drop-off pressure
    < 0,15 bar
  • Min. pulse length for actuator
    8 ms
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic connection
    M5
  • Actuator response pressure
    > 0.8 bar
  • Resetting cutout pressure
    < 0,15 bar
  • Minimum pause period for actuator
    10 ms
  • Product weight
    70 g
  • Housing material
    PA
  • Design
    Mechanical sequence counter with pneumatic actuator
  • Display
    6-digit
  • Operating pressure
    2 bar ... 8 bar
  • Minimum resetting pressure
    2 bar
  • Minimum pause period for reset
    50 ms
  • Reset method
    Manual key or pneumatic signal
  • Response pressure resetting
    2 bar
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Ambient temperature
    0 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
