8097469 Festo Ball Valves

Name: 8097469
Brand: Festo

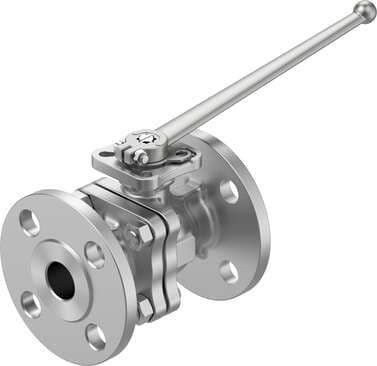

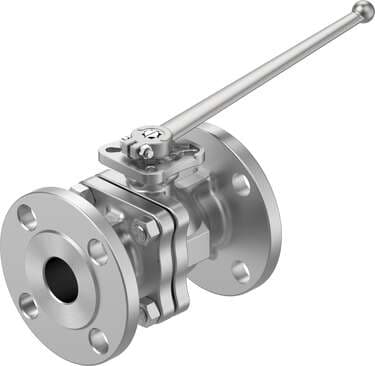

Festo 8097469 ball valve VZBF-1-P1-20-D-2-F0405-M-V15V15 Design structure: 2-way ball valve, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

Part#:8097469

Manufacturer:Festo

Alt. Part#:VZBF-1-P1-20-D-2-F0405-M-V15V15

Product Lifecycle:Active

Get a quick Quote!

ball valve VZBF-1-P1-20-D-2-F0405-M-V15V15 Design structure: 2-way ball valve, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

About the manufacturer: Festo is one of the manufacturers that offers Ball Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8097469 Festo price in the box on the right side or send a quick quote.

Product Details

Actuation type
Mechanical
Fitting connection
Flange as per ANSI B16.5 class 150
Valve function
2/2
Flow direction
Reversible
Housing material
Cast stainless steel
Shaft material
High-alloy stainless steel
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Design
2-way ball valve
Flange hole pattern
F0405
Nominal pressure of fitting PN
20
Based on norm
ANSI B16.5 class150 ISO 5211
Ball material
Cast stainless steel
Material number for shaft
1.4401
Seat seal material
PTFE PTFE, modified
Type of mounting
Line installation
Inside diameter
24 mm
Medium
Vapor Neutral liquids
Seals material
FPM PTFE
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Product weight
3200 g

Sealing principle

Soft

Symbol

00991458

Temperature of medium

-20 °C ... 200 °C

Material number for ball

1.4408

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Type code

VZBF

Mounting position

Any

Switching position indication

Slot direction = flow direction

Nominal width DN

Breakaway torque at differential pressure, nominal pressure, fitting PN

12 Nm

Flow rate Kv

23.2 m³/h

Material number of housing

1.4408

Certification

API607 CRN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
