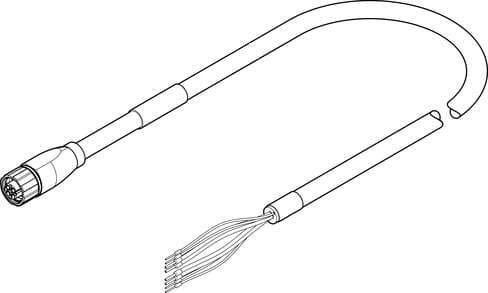

8085953 Festo Cable Assemblies

Product Details

• Type code
  NEBM
• Electrical connection 1, function
  Field device end
• Electrical connection 1, occupied pins/wires
  6
• Electrical connection 2, number of pins/wires
  8
• Operating voltage range AC
  0 V ... 600 V
• Based on norm
  EN 61984
• Electrical connection 1, connection type
  Socket
• Electrical connection 1, connection technology
  M16x0.75
• Electrical connection 2, connection technology
  Open end
• DC operating voltage range
  0 V ... 600 V
• Surge resistance
  6 kV
• Cable characteristic
  Suitable for energy chains
• Bending radius, flexible cable installation
  ≥ 110 mm
• Product weight
  2500 g
• Electrical connection 1, number of pins/wires
  8
• Electrical connection for input 1, connection pattern
  00995654
• Note on operating voltage range DC
  0 - 300 V for conductor cross-section of 0.25 mm²
• Cable length
  15 m
• Degree of protection
  IP65
• Ambient temperature with flexible cable installation
  -40 °C ... 90 °C
Contamination level
3
Electrical connection 1, design
Round
Electrical connection 2, function
Control side
Electrical connection 2, occupied pins/wires
6
Note on acceptable current load at 40°C
4 A for conductor cross-section of 0.25 mm²
Cable design
4 x 0.75 mm² + 2 x (2 x 0.25 mm²) Shielded
Note on degree of protection
In mounted state
Note on materials
RoHS-compliant
Color cable sheath
Orange
Cable designation
Without label holder
Electrical connection 1, cable outlet
Straight
Electrical connection 2, connection type
Cable
Note on operating voltage range AC
0 - 300 V for conductor cross-section of 0.25 mm²
Current rating at 40°C
12 A
Bending radius, fixed cable installation
≥ 55 mm
Ambient temperature
-50 °C ... 90 °C
Corrosion resistance class (CRC)
0 - No corrosion stress
Note on surge resistance
4 kV for a conductor cross-section of 0.25 mm²
Cable diameter
11 mm
Nominal conductor cross section
0.25 mm² 0.75 mm²
Material of cable sheath
TPE-U(PUR)
Wire ends
Cable end sleeve as per DIN 46228-A..-10 Cable end sleeve as per DIN 46228-E..-10
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Insulating sheath material
TPE-E
