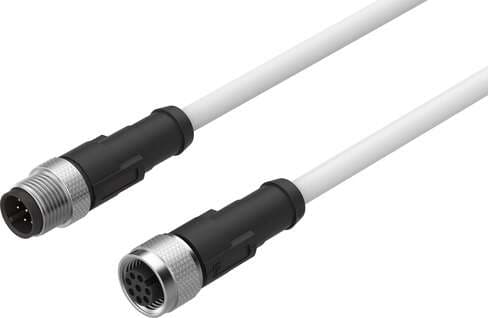

8080786 Festo Cable Assemblies

Product Details

• Certificate issuing authority
  UL E474609
• Product weight
  112 g
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection 1, occupied pins/wires
  8
• Electrical connection 2, connection type
  Plug
• Electrical connection 2, occupied pins/wires
  8
• Electrical connection 1, cable outlet
  Angled
• Electrical connection 2, function
  Control side
• Electrical connection 2, type of mounting
  Screw-type lock
• DC operating voltage range
  0 V ... 30 V
• Connector cable test conditions
  Test conditions on request
• Cable diameter
  6 mm
• Shield
  no
• Based on norm
  EN 61076-2-101
• Electrical connection 1, function
  Field device end
• Electrical connection 1, number of pins/wires
  8
• Electrical connection 1, type of mounting
  Screw-type lock
• Electrical connection 2, cable outlet
  Straight
• Electrical connection 2, connection pattern
  00992264
• Cable characteristic
  Suitable for energy chains
Degree of protection
IP65 IP67
Contamination level
3
Seals material
NBR
Type code
NEBC
Cable designation
Without label holder
Electrical connection 1, design
Round
Electrical connection for input 1, connection pattern
00992265
Electrical connection 2, connection technology
M12x1 A-coded as per EN 61076-2-101
Operating voltage range AC
0 V ... 30 V
Cable length
2 m
Bending radius, flexible cable installation
≥ 30 mm
Nominal conductor cross section
0.25 mm²
Note on materials
RoHS-compliant
Ambient temperature with flexible cable installation
-25 °C ... 90 °C
Housing material
TPE-U(PUR)
Material of pin contacts
Brass
Certification
c UL us - Listed (OL)
Electrical connection 1, connection type
Socket
Electrical connection 2, design
Round
Electrical connection 2, number of pins/wires
8
Current rating at 40°C
2 A
Cable diameter tolerance
± 0.2 mm
CE marking (see declaration of conformity)
As per EU RoHS directive
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Insulating sheath material
PP
Surge resistance
0.8 kV
Bending radius, fixed cable installation
≥ 30 mm
Cable design
8 x 0.25 mm²
Ambient temperature
-25 °C ... 90 °C
Color cable sheath
silver-grey
Material of screw-type lock
Die-cast zinc, nickel-plated
Note on degree of protection
In mounted state
Material of cable sheath
TPE-U(PUR)
Housing colour
Black
