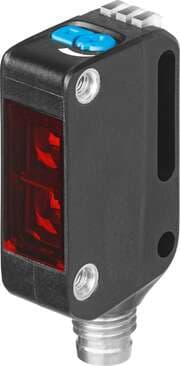

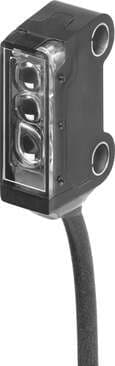

8075664 Festo Diffuse Sensors

Product Details

• Electrical connection 1, connection type
  Plug
• Detection method
  Reflection light sensor with HGA
• Conforms to standard
  EN 60947-5-2
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Switching element function
  Switchable NPN, dark-switching
• Short-circuit protection
  Pulsed
• IO-Link®, profile
  Smart sensor profile
• Ambient temperature
  -40 °C ... 60 °C
• Electrical connection 1, type of mounting
  Screw-type lock
• Electrical connection 1, connection technology
  M8x1 A-coded as per EN 61076-2-104
• Design
  Block design
• Measuring principle
  Optoelectronic
• Voltage drop
  0 V ... 1.5 V
• Protocol
  IO-Link®
• IO-Link®, process data content IN
  1 bit SSC (switching signal)
• IO-Link®, process data width IN
  1 bit
• Type of mounting
  With through-hole for M3 screw
• Material of pin contacts
  Brass, gold-plated
• Product weight
  10 g
• Degree of protection
  IP65 IP69K
Electrical connection 1, number of pins/wires
3
Type of light
Red LED
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Max. light spot
20 mm for scan width of 350 mm
Switching output
Push-pull
IO-Link®, protocol version
Device V 1.1
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data content OUT
1 bit (emitter disable) 1 bit (hold)
Idle current
25 mA
Ready status indication
LED green
Setting range, upper limit
350 mm
Surge resistance
1 kV
Type code
SOOE
Electrical connection for input 1, connection pattern
00991155
Symbol
00995956
Working range
5 mm ... 350 mm
Reference material
Standard white 90%, 100x100 mm
Max. switching frequency
500 Hz
Max. output current
100 mA
IO-Link®, process data width OUT
2 bit
IO-Link®, data memory required
2000 byte
Reverse polarity protection
for all electrical connections
Mounting position
Any
Setting options
IO-Link® Teach-in
Insulation voltage
500 V
Certificate issuing authority
UL E232949
Max. black-white difference
15 %
Certification
RCM compliance mark c UL us - Listed (OL)
Minimum object diameter
10 mm
Hysteresis
21 mm
Timer function
Via IO-Link®
IO-Link®, function classes
Process data variable (PDV) Switching signal channel (SSC)
IO-Link®, SIO mode support
Yes
DC operating voltage range
10 V ... 30 V
Housing material
PC PMMA
Setting range, lower limit
25 mm
Contamination level
3
IO-Link®, port class
A
IO-Link®, minimum cycle time
2.3 ms
Residual ripple
10 %
Tightening torque
0.8 Nm
Switching status indication
LED yellow
Corrosion resistance class (CRC)
1 - Low corrosion stress
