8065337 Festo Quarter Turn Actuators

Name: 8065337
Brand: Festo

Part#:8065337

Manufacturer:Festo

Alt. Part#:DFPD-40-RP-135-RD-F0507

Product Lifecycle:Active

Get a quick Quote!

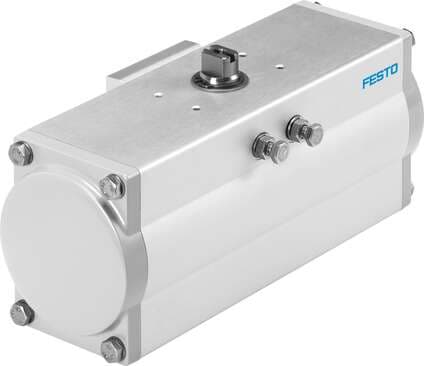

semi-rotary drive DFPD-40-RP-135-RD-F0507 double-acting, rack and pinion engineering design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211. Si

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8065337 Festo price in the box on the right side or send a quick quote.

Product Details

Nominal operating pressure
5.5 bar
PFH
1.01E-7
End-position adjusting range at nominal swivel angle
-5 deg ... 5 deg
Mounting position
Any
Symbol
00991265
Type of ignition protection for gas
Ex h IIC T4 Gb X
Ambient temperature
-20 °C ... 80 °C
Storage temperature
-20 °C ... 60 °C
Operating pressure
2 bar ... 8 bar
Safety function
The fundamental safety function is the execution of a complete working stroke (opening and closing of the process valve) within a defined time.
Depth shaft connection
16 mm
Mode of operation
Double-acting
ATEX category gas
II 2G
ATEX category for dust
II 2D
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
5.6 l
Material of sub-base
Wrought aluminum alloy, anodized
Material of screws
High-alloy stainless steel
Size of valve actuator
40

MTTFd

1126 years

Devices type according to VDMA 66413

Safety device

Maritime classification

See certificate

Flange hole pattern

F0507

Design

Gear rack/pinion

Safety integrity level (SIL)

Up to SIL 2 low demand mode up to SIL 1 high demand mode

Type of (ignition) protection for dust

Ex h IIIC T105°C Db X

Certificate issuing authority

DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19

Note about the torque

The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.

Note on materials

RoHS-compliant

Material of bearing

POM

Cam material

High-alloy stainless steel

Swivel angle

135 deg

Type code

DFPD

Closing direction

Clockwise closing

Certified for safety function to ISO 13849 and IEC 61508 (SIL)

Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture

Explosive ambient temperature

-20°C <= Ta <= +80°C

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Torque at nominal operating pressure and 0° swivel angle

38.3 Nm

Shaft connection

T14

Pneumatic connection

G1/8

Seals material

NBR

End-position adjusting range at 0°

-5 deg ... 5 deg

Standard connection for valve

ISO 5211

Valve connection conforms to standard

VDI/VDE 3845 (NAMUR)

Connection for valve positioner and position sensor conforms to standard

VDI/VDE 3845 size AA 1

Information on operating and pilot media

Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

PFD

0.00142

Cover material

Die-cast aluminum, coated

Material of piston

Die-cast aluminum

Torque at nominal operating pressure and 90° swivel angle

38.3 Nm

Product weight

2467 g

Housing material

Wrought aluminum alloy, anodized

Shaft material

Steel, nickel-plated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
