8060522 Festo Angle Seat Valves

Name: 8060522
Brand: Festo

Part#:8060522

Manufacturer:Festo

Category:Angle Seat Valves

Alt. Part#:VZXA-A-TS7-1"-M2-V14T-16-K-75-20-PR-V4

Product Lifecycle:Active

Get a quick Quote!

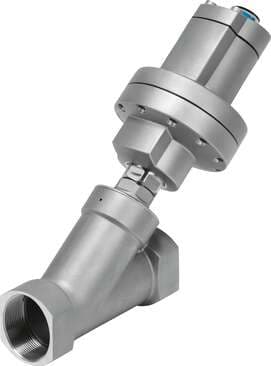

angle seat valve VZXA-A-TS7-1"-M2-V14T-16-K-75-20-PR-V4 Modular, pneumatically actuated angle seat valve in stainless steel. Over seat version, safety position closed, NPT thread, nominal width 1". Design structure: Poppet valve with piston actuator, Type

About the manufacturer: Festo is one of the manufacturers that offers Angle Seat Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8060522 Festo price in the box on the right side or send a quick quote.

Product Details

Certificate issuing authority
CRN0C20829.5C German Technical Control Board (TÜV) 968/V 1039.00/18
Actuation type
Pneumatic
Flow direction
Above valve seat, for gaseous media
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-10 °C ... 180 °C
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Material number, fitting housing
ASTM A351-CF3M
Actuator size
75 mm
Material number, drive housing
1.4408
Piston rod material
High-alloy stainless steel
PFH
1.36E-7
Certification
CRN
Design
Poppet valve with piston actuator
Reset method
Mechanical spring
Control of the medium
On/off mode
Seals material
FPM
Stroke
20 mm
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Type code
VZXA
Medium pressure
0 bar ... 16 bar

Cable connection

Threaded sleeve 1 NPT as per ANSI/ASME B 1.20.1

Valve function

2/2

Medium

Vapor Filtered compressed air, 200 µm filter mesh

Max. viscosity

600 mm²/s

CE marking (see declaration of conformity)

as per EU machinery directive

Control function

Closed by reduced spring force, NC

Cover material

Cast stainless steel

Use in exterior area

wettergeschützte Einsatzorte Klasse C1 in Anlehnung an IEC 60654-1

Mounting position

Any

Symbol

00995586

Ambient temperature

0 °C ... 60 °C

Valve housing material

Cast stainless steel

Spindle seal material

PTFE

Storage temperature

-10 °C ... 60 °C

Safety integrity level (SIL)

SIL 2

PFD

5.95E-4

Operating pressure

5 bar ... 10 bar

Type of mounting

Line installation

Type of control

Externally controlled

Pneumatic connection

Internal thread G1/8

Flow rate Kv

21.5 m³/h

Seat seal material

PTFE

Product weight

3395 g

Position sensing

With mechanical indicator

Drive housing material

Cast stainless steel

Degree of protection

IP65 IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
