8059274 Festo Pneumatic Components

8059274 on Powermatic Associates
Festo

Part#:8059274

Alt. Part#:NPHS-D6-P-BC9

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

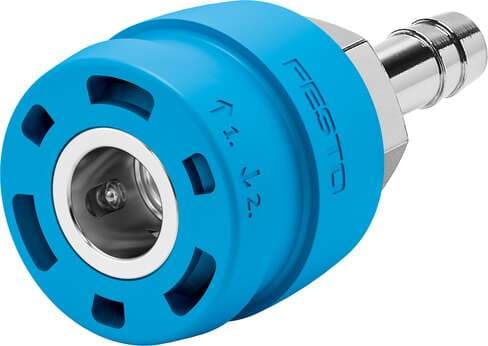

coupling socket NPHS-D6-P-BC9 Nominal size: 7 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Standard nominal flow rate: 1448 l/min, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilo

Product Details

  • Type code
    NPHS
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Standard nominal flow rate
    1448 l/min
  • Product weight
    95 g
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Note on materials
    RoHS-compliant
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    For plug-in sleeve inside diameter 9 mm
  • Nominal width
    7 mm
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8059274 Related Documents

8059274 DataSheet.pdf
