8047107 Festo Mechanical & Manual Valves

8047107 on Powermatic Associates
Festo

Part#:8047107

Alt. Part#:VMEF-KT-M32-M-N14

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

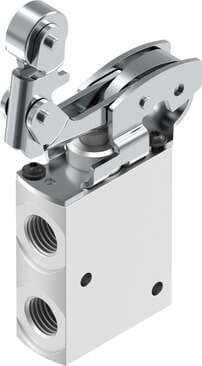

roller lever valve VMEF-KT-M32-M-N14 Valve function: 3/2-way, monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: -0,095 - 1 MPa

Product Details

  • Nominal width
    6 mm
  • Sealing principle
    Soft
  • Type of control
    Direct
  • Cam angle
    30 deg
  • Ambient temperature
    -10 °C ... 60 °C
  • Actuating force
    32.7 N
  • Pneumatic connection 1
    1/4 NPT
  • Seals material
    NBR
  • Pneumatic working port
    1/4 NPT
  • Design
    One-way roller lever Plate seat
  • Symbol
    00991348
  • Note on ambient temperature
    Influence of heat on wear
  • Product weight
    218 g
  • Lap
    Zero overlap
  • Width
    20 mm
  • Max. stroke limit (hard)
    11 mm
  • Mounting position
    Any
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 2
    1/4 NPT
  • Pneumatic connection 3
    1/4 NPT
  • Housing material
    Wrought aluminum alloy, anodized
  • Operating pressure
    -0.95 bar ... 10 bar
  • Standard nominal flow rate
    870 l/min
  • Application note
    Risk of pinching
  • Max. switching frequency
    3 Hz
  • Temperature of medium
    -10 °C ... 60 °C
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    RoHS-compliant
  • Valve function
    3/2, monostable
  • Actuation type
    Mechanical
  • Reset method
    Mechanical spring
  • Type code
    VMEF
  • Flow direction
    Reversible
  • Max. actuating speed with lateral actuation
    0.7 m/s
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Type of mounting
    With through-hole
  • Actuator attachments material
    Steel, galvanized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
