8047104 Festo Mechanical & Manual Valves

Name: 8047104
Brand: Festo

Part#:8047104

Manufacturer:Festo

Alt. Part#:VMEF-K-M52-M-N18

Product Lifecycle:Active

Get a quick Quote!

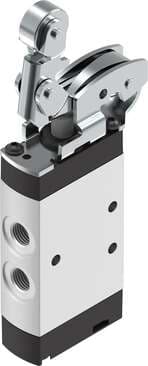

roller lever valve VMEF-K-M52-M-N18 Valve function: 5/2 monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 750 l/min, Operating pressure MPa: -0,095 - 1 MPa

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8047104 Festo price in the box on the right side or send a quick quote.

Product Details

Width
20 mm
Max. stroke limit (hard)
11.8 mm
Application note
Risk of pinching
Flow direction
Reversible
Symbol
00992208
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 5
1/8 NPT
Actuation type
Mechanical
Design
One-way roller lever Piston gate valve
Type code
VMEF
Type of control
Direct
Cam angle
30 deg
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Actuating force
23.5 N
Pneumatic connection 2
1/8 NPT
Note on materials
RoHS-compliant
Seals material
NBR
Lap
Overlap
Pneumatic working port
1/8 NPT

Nominal width

5.2 mm

Mounting position

Any

Max. actuating speed with lateral actuation

0.7 m/s

Corrosion resistance class (CRC)

1 - Low corrosion stress

Product weight

255 g

Pneumatic connection 3

1/8 NPT

Actuator attachments material

Steel, galvanized

Housing material

Wrought aluminum alloy, anodized

Valve function

5/2, monostable

Standard nominal flow rate

750 l/min

Reset method

Mechanical spring

Sealing principle

Soft

Max. switching frequency

3 Hz

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-]

Note on ambient temperature

Influence of heat on wear

Pneumatic connection 4

1/8 NPT

Cover material

PA-reinforced

Operating pressure

-0.95 bar ... 10 bar

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Type of mounting

With through-hole

Pneumatic connection 1

1/8 NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
