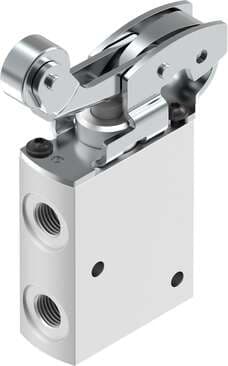

8047098 Festo Mechanical & Manual Valves

Product Details

• Width
  20 mm
• Valve function
  3/2, monostable
• Nominal width
  5.6 mm
• Type of control
  Direct
• Max. switching frequency
  3 Hz
• Temperature of medium
  -10 °C ... 60 °C
• Standard nominal flow rate
  750 l/min
• Type code
  VMEF
• Application note
  Risk of pinching
• Flow direction
  Reversible
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Ambient temperature
  -10 °C ... 60 °C
• Pneumatic connection 3
  1/8 NPT
• Actuation type
  Mechanical
• Max. stroke limit (hard)
  6.3 mm
• Mounting position
  Any
• Max. actuating speed with lateral actuation
  1.4 m/s
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Product weight
  209 g
• Pneumatic connection 1
  1/8 NPT
Seals material
NBR
Operating pressure
-0.95 bar ... 10 bar
Design
Roller lever Plate seat
Reset method
Mechanical spring
Cam angle
30 deg
Corrosion resistance class (CRC)
1 - Low corrosion stress
Note on ambient temperature
Influence of heat on wear
Actuator attachments material
Steel, galvanized
Lap
Zero overlap
Pneumatic working port
1/8 NPT
Sealing principle
Soft
Symbol
00991353
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Actuating force
35.2 N
Pneumatic connection 2
1/8 NPT
Housing material
Wrought aluminum alloy, anodized
Type of mounting
With through-hole
Note on materials
RoHS-compliant
