8047093 Festo Mechanical & Manual Valves


Part#:8047093
Alt. Part#:VMEF-R-M52-E-G14
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description

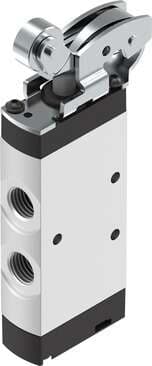

roller lever valve VMEF-R-M52-E-G14 Valve function: 5/2 monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 1200 l/min, Operating pressure MPa: -0,095 - 1 MPa
Product Details
- Lap Overlap
- Standard nominal flow rate 1200 l/min
- Nominal width 7 mm
- Flow direction Reversible
- Max. switching frequency 3 Hz
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Type of mounting With through-hole
- Note on materials RoHS-compliant
- Width 20 mm
- Max. stroke limit (hard) 11.6 mm
- Type of control Direct
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 1 G1/4
- Actuator attachments material Steel, galvanized
- Housing material Wrought aluminum alloy, anodized
- Operating pressure -0.95 bar ... 10 bar
- Reset method Pneumatic spring
- Sealing principle Soft
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Cam angle 30 deg
- Actuating force 38 N
- Pneumatic connection 3 G1/4
- Cover material PA-reinforced
- Actuation type Mechanical
- Design Piston gate valve Roller lever
- Type code VMEF
- Mounting position Any
- Max. actuating speed with lateral actuation 1.4 m/s
- Temperature of medium -10 °C ... 60 °C
- Product weight 272 g
- Pneumatic connection 2 G¼
- Pneumatic connection 5 G1/4
- Valve function 5/2, monostable
- Pneumatic working port G1/4
- Application note Risk of pinching
- Symbol 00992201
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Note on ambient temperature Influence of heat on wear
- Pneumatic connection 4 G1/4
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
