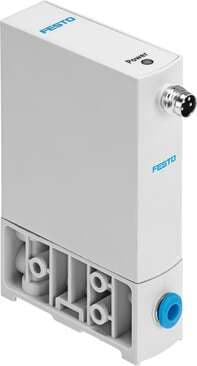

8046299 Festo Proportional Valves

Product Details

• Absolute accuracy in ± %FS at room temperature
  0.75 %FS
• Valve function
  3-way proportional pressure control valve
• Symbol
  00995607
• Storage temperature
  -20 °C ... 70 °C
• Inlet pressure 1
  0 bar ... 6.5 bar
• Linearity error FS
  0.5 %
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Reference value
  0 - 10 V
• Reset method
  Mechanical spring
• Ambient temperature
  0 °C ... 50 °C
• Pneumatic connection 2
  QS-4
• Outlet pressure 2
  0.03 bar ... 6 bar
• Repetition accuracy in ± %FS
  0.4 %FS
• Degree of protection
  IP65
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Display type
  LED
• Electrical connection
  4-pin as per EN 60947-5-2
• KC characters
  KC EMC
• Inlet pressure 1 MPa
  0 MPa ... 0.65 MPa
• Mounting position
  Any
Sealing principle
Soft
Pneumatic connection 3
QS-4
Standard nominal flow rate
≥ 20 l/min
Hysteresis in ± %FS
0.25 %FS
Product weight
70 g
DC operating voltage range
19 V ... 29 V
Max. electrical power consumption
1 W
Short-circuit protection
For all electrical connections
Type code
VEAB
Inlet pressure 1 psi
0 psi ... 94.25 psi
Actuation type
Electrical
Temperature of medium
5 °C ... 50 °C
Pneumatic connection 1
QS-4
Type of mounting
Optionally: With accessories
Information on operating and pilot media
Operation with oil lubrication not possible
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Nominal operating voltage DC
24 V
Precision analog output in ± %FS
2 %FS
Reverse polarity protection
for all electrical connections
Analog output signal range
0 - 10 V
Output pressure 2
0.003 MPa ... 0.6 MPa
Type of control
Direct
Dimensions W x L x H
18 mm x 60.5 mm x 85 mm
Seals material
NBR
Standard nominal flow rate 2-3
≥ 20 l/min
Temperature coefficient
0.05 %/K
Certification
RCM compliance mark
CE marking (see declaration of conformity)
As per EU EMC directive
Residual ripple
10 %
Housing material
PA-reinforced
Safety instructions
VEAA/VEAB safety position: if the electrical power supply is lost, the outlet pressure is maintained in uncontrolled form, it may increase or fall – pneumatic valve blocked.
