8035441 Festo Valve Manifold Accessories

Name: 8035441
Brand: Festo

Part#:8035441

Alt. Part#:VMPA2-VSP-QS6

Manufacturer:Festo

Category:Valve Manifold Accessories

Product Lifecycle:Active

Product description

vertical pressure supply plate VMPA2-VSP-QS6 Grid dimension: 21 mm, Operating pressure: -0,9 - 10 bar, Pilot pressure: 3 - 8 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4], Corrosion resistance classification CRC: 1 - Low

Product Details

Symbol
00991883
Pilot pressure
3 bar ... 8 bar
Note on materials
RoHS-compliant
Ambient temperature
-5 °C ... 50 °C
Corrosion resistance class (CRC)
1 - Low corrosion stress
Supply plate material
PA-reinforced
Width dimension
21 mm
Pilot pressure MPa
0.3 MPa ... 0.8 MPa
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 1
QS-6
Type code
VMPA2
Operating pressure
-0.09 MPa ... 1 MPa
Product weight
80 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8035441 Related Documents

8035441 DataSheet.pdf

Similar products from: Festo Valve Manifold Accessories

573422

Festo

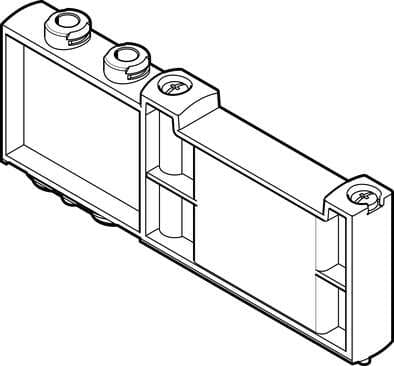

blanking plate VABB-L1-10-T Authorisation: (* c CSA us (OL), * c UL us - Recognized (OL)), Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Product weight: 21 g, Materials note: Conforms to RoHS

5 in stock

573384

Festo

electrical interface VAEM-L1-S-8-PT KC mark: KC-EMV, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Authorisation: RCM Mark, Product weight: 49 g, Materials note: Conforms to RoHS

14 in stock

574208

Festo

electrical interface VAEM-L1-S-16-PTL KC mark: KC-EMV, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Authorisation: RCM Mark, Product weight: 100 g, Materials note: Conforms to RoHS

10 in stock

573445

Festo

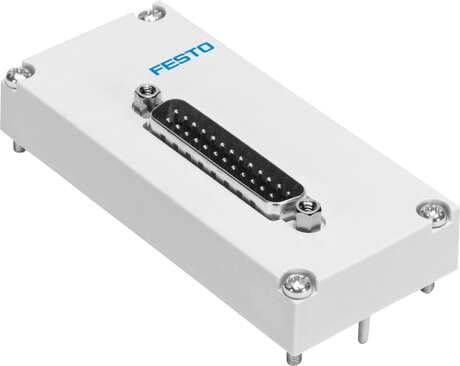

electrical interface VAEM-L1-S-M1-25 KC mark: KC-EMV, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Authorisation: RCM Mark, Product weight: 53 g, Materials note: Conforms to RoHS

5 in stock

Manufacturer warranty
