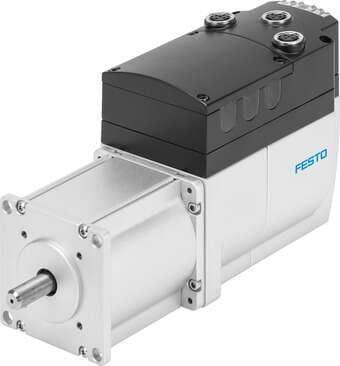

8034239 Festo Pneumatic Components

Product Details

• Rotor position sensor measuring principle
  Magnetic
• Safety function
  Safe torque off (STO)
• KC characters
  KC EMC
• Rotor position sensor
  Absolute encoder, single-turn
• Display
  LED
• Hardware fault tolerance
  1
• Parameterization interface
  Ethernet
• Peak current
  10.3 A
• Degree of protection
  IP54
• Rotor mass moment of inertia
  0.301 kgcm²
• Communication profile
  CiA402 FHPP
• Controller operating mode
  PWM MOSFET power output stage PI current regulator
• Max. rotational speed
  3300 1/min
• Braking resistor, external
  6 Ohm
• Max. positive test pulse with 0 signal
  10000 µs
• SFF safe failure fraction
  > 90 %
• Motor peak power
  200 W
• Permissible voltage fluctuations
  +/- 20 %
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• PFH
  1.0E-9
Type code
EMCA
Protective function
I²t monitoring Software end position detection
Diagnostic coverage
90 %
Motor nominal power
150 W
Protocol
CANopen
Certificate issuing authority
German Technical Control Board (TÜV) 01/205/5514.00/16 UL E331130
Relative air humidity
0 - 95 % Non-condensing
Ambient temperature
0 °C ... 50 °C
Nominal torque
0.45 Nm
Permissible radial shaft load
100 N
Logic input specification
Based on IEC 61131-2
Input switching logic
PNP (positive switching)
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Performance Level (PL)
Safe torque off (STO)/category 3, performance level d
Safety integrity level (SIL)
Safe torque off (STO)/SIL 2
Characteristics of digital logic outputs
Freely configurable in some cases Not galvanically isolated
Max. negative test pulse on 1 signal
600 µs
DC nominal voltage
24 V
Max. number of positioning sets
64
CE marking (see declaration of conformity)
As per EU EMC directive as per EU machinery directive
Storage temperature
-25 °C ... 70 °C
Note on ambient temperature
Above an ambient temperature of 20 °C, the power must be reduced by 1.75% per °C.
Permissible axial shaft load
60 N
Proof test interval
20 y
Work range of logic input
24 V
Switching logic at outputs
PNP (positive switching)
Nominal rotary speed
3150 1/min
Max. current of digital logic outputs
100 mA
Nominal current
7.2 A
Rotor position sensor resolution
12 bit
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Corrosion resistance class (CRC)
1 - Low corrosion stress
Certification
RCM compliance mark c UL us - Recognized (OL)
Peak torque
0.91 Nm
PFD
1.86E-5
Number of digital logic outputs 24 V DC
2
Ethernet, supported protocols
TCP/IP
Product weight
2260 g
Number of digital logic inputs
2
Characteristics of logic input
Galvanically connected to logic potential
Type of mounting
Screwed tightly With through-hole
