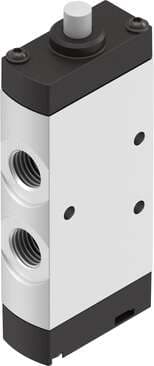

8031302 Festo Mechanical & Manual Valves

Product Details

• Operating pressure
  -0.95 bar ... 10 bar
• Pneumatic working port
  G1/4
• Application note
  Do not use as mechanical stop
• Flow direction
  Reversible
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Valve function
  5/2, monostable
• Standard nominal flow rate
  1200 l/min
• Nominal width
  7 mm
• Max. switching frequency
  3 Hz
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Product weight
  178 g
• Pneumatic connection 2
  G¼
• Pneumatic connection 4
  G1/4
• Seals material
  NBR
• Actuation type
  Mechanical
• Design
  Piston gate valve
• Sealing principle
  Soft
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection 1
  G1/4
Cover material
PA-reinforced
Lap
Overlap
Width
20 mm
Type code
VMEF
Mounting position
Any
Symbol
00991364
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 5
G1/4
Reset method
Mechanical spring
Type of control
Direct
Temperature of medium
-10 °C ... 60 °C
Actuating force
43 N
Type of mounting
With through-hole
Housing material
Wrought aluminum alloy, anodized
Pneumatic connection 3
G1/4
Note on materials
RoHS-compliant
