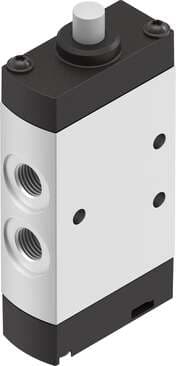

8031299 Festo Mechanical & Manual Valves

Product Details

• Nominal width
  5.2 mm
• Mounting position
  Any
• Symbol
  00992217
• Max. switching frequency
  3 Hz
• Pneumatic connection 1
  G1/8
• Cover material
  PA-reinforced
• Valve function
  5/2, monostable
• Standard nominal flow rate
  750 l/min
• Pneumatic working port
  G1/8
• Application note
  Do not use as mechanical stop
• Flow direction
  Reversible
• Temperature of medium
  -10 °C ... 60 °C
• Type of mounting
  With through-hole
• Pneumatic connection 4
  G1/8
• Housing material
  Wrought aluminum alloy, anodized
• Lap
  Overlap
• Operating pressure
  -0.95 bar ... 10 bar
• Design
  Piston gate valve
• Type code
  VMEF
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Pilot air port 12/14
M5
Note on materials
RoHS-compliant
Type of control
Direct
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-10 °C ... 60 °C
Product weight
144 g
Pneumatic connection 2
G1/8
Seals material
NBR
Actuation type
Mechanical
Width
20 mm
Reset method
Pneumatic spring
Sealing principle
Soft
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Actuating force
28 N
Pneumatic connection 3
G1/8
Pneumatic connection 5
G1/8
