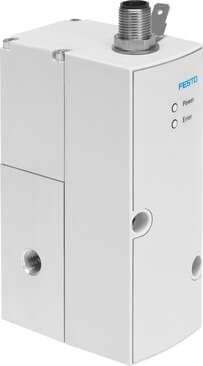

8031109 Festo Proportional Valves

Product Details

• Exhaust nominal width
  4.5 mm
• Sealing principle
  Soft
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Type code
  VPPM
• Short-circuit protection
  For all electrical connections
• Reset method
  Mechanical spring
• Valve function
  3-way proportional pressure control valve
• Max. pressure hysteresis
  0.05 bar
• Max. current consumption
  300 mA
• Ambient temperature
  0 °C ... 60 °C
• Repetition accuracy FS
  0.5 %
• IO-Link®, process data width OUT
  2 Byte
• IO-Link®, minimum cycle time
  0.5 ms
• Nominal width pressurization
  6 mm
• Mounting position
  Any
• Reverse polarity protection
  for all electrical connections
• Display type
  LED
• DC operating voltage range
  18 V ... 30 V
• Duty cycle
  100%
• Residual ripple
  10 %
Temperature coefficient
0.04 %/K
Linearity error FS
1 %
Type of mounting
Optionally: With accessories
Note on materials
RoHS-compliant
KC characters
KC EMC
Actuation type
Electrical
Design
Pilot-controlled diaphragm regulator
Type of control
Pilot-controlled
Pressure regulation range
0.1 bar ... 10 bar
Standard nominal flow rate
1400 l/min
Information on operating and pilot media
Operation with oil lubrication not possible
Degree of protection
IP65
IO-Link®, protocol version
Device V 1.1
IO-Link®, process data width IN
2 Byte
Pneumatic connection 2
Sub-base
Protocol
I-Port IO-Link®
CE marking (see declaration of conformity)
As per EU EMC directive
Temperature of medium
10 °C ... 50 °C
Product weight
400 g
IO-Link®, communication mode
COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd)
Pneumatic connection 1
Sub-base
Symbol
00995303
Inlet pressure 1
0 bar ... 11 bar
Max. electrical power consumption
7 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Certification
RCM compliance mark c UL us - Listed (OL)
IO-Link®, port class
A
Pneumatic connection 3
Sub-base
Housing material
Wrought aluminum alloy Anodized
