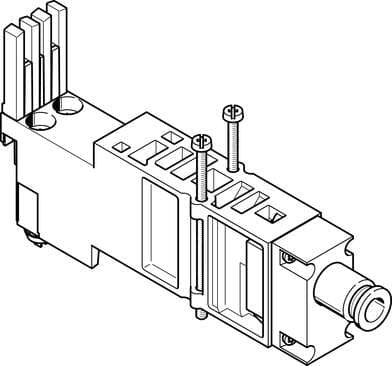

8029491 Festo Valve Manifold Accessories

Name: 8029491
Brand: Festo

Part#:8029491

Alt. Part#:VMPA2-VSP-QS5/16

Manufacturer:Festo

Category:Valve Manifold Accessories

Product Lifecycle:Active

Product description

vertical pressure supply plate VMPA2-VSP-QS5/16 Grid dimension: 21 mm, Operating pressure: -0,9 - 10 bar, Pilot pressure: 3 - 8 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4], Corrosion resistance classification CRC: 1 - L

Product Details

Corrosion resistance class (CRC)
1 - Low corrosion stress
Supply plate material
PA-reinforced
Width dimension
21 mm
Pilot pressure
3 bar ... 8 bar
Product weight
85 g
Type code
VMPA2
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Operating pressure
-0.09 MPa ... 1 MPa
Pneumatic connection 1
QS-5/16
Pilot pressure MPa
0.3 MPa ... 0.8 MPa
Symbol
00991883
Ambient temperature
-5 °C ... 50 °C
Note on materials
RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8029491 Related Documents

8029491 DataSheet.pdf
