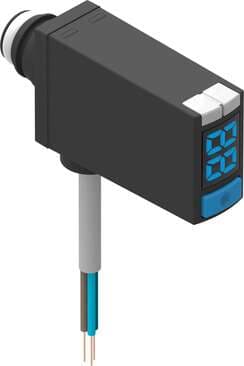

8025978 Festo Pressure Sensors

Product Details

• KC characters
  KC EMC
• Certificate issuing authority
  UL E322346
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Repetition accuracy in ± %FS
  0.3 %FS
• Switching element function
  N/C contact Switchable
• Display range end value
  99 %FS
• IO-Link®, communication mode
  COM2 (38,4 kBd)
• IO-Link®, minimum cycle time
  3 ms
• Reverse polarity protection
  for all electrical connections
• Type of mounting
  Pin-type conneciton
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Method of measurement
  Piezoresistive pressure sensor with display
• Max. overload pressure
  5 bar
• Display range start value
  0 %FS
• Switching function
  Freely programmable
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, SIO mode support
  Yes
• IO-Link®, process data width IN
  2 Byte
• Electrical connection
  3-wire Open end
• Pneumatic connection
  Cartridge 10 mm
Type code
SPAE
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Pressure measuring range end value
-1 bar
Ambient temperature
0 °C ... 50 °C
Temperature co-efficient in ± %FS/K
0.05 %FS/K
Max. output current
100 mA
Short-circuit protection
yes
IO-Link®, profile
Smart sensor profile
IO-Link®, port class
A
IO-Link®, data memory required
500 byte
DC operating voltage range
18 V ... 30 V
Display type
LED display 2-digit
Switching status indication
LED yellow
Degree of protection
IP40
Measured variable
Relative pressure
Information on operating and pilot media
Operation with oil lubrication possible
Accuracy in ± % FS
1.5 %FS
Sealing ring material
NBR
Setting options
IO-Link® Via display and pushbuttons
Symbol
00995430
Note on materials
RoHS-compliant
Pressure measuring range initial value
0 bar
Temperature of medium
0 °C ... 50 °C
ADC resolution
10 bit
Switching output
PNP/NPN switchable
Protocol
IO-Link®
IO-Link®, protocol version
Device V 1.1
IO-Link®, process data width OUT
0 Byte
IO-Link®, process data content IN
14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
Cable length
2.5 m
Mounting position
Any
Housing material
PA-reinforced
Protection against tampering
PIN code
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
40 g
Displayable unit(s)
%FS
Setting range threshold value
1 % ... 98 %
