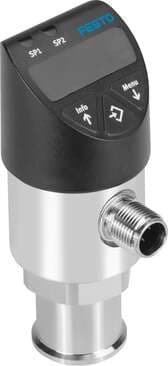

8022837 Festo Pressure Sensors

Product Details

• Symbol
  00995380
• Measured variable
  Relative pressure
• Max. overload pressure
  100 bar
• Ambient temperature
  0 °C ... 80 °C
• Repetition accuracy in ± %FS
  0.15 %FS
• Switching element function
  Switchable
• Reverse polarity protection
  for operating voltage
• Materials in contact with the media
  High-alloy stainless steel
• Switching status indication
  LED red
• Setting range hysteresis
  0.5 % ... 99.5 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Method of measurement
  Metal thin-film pressure sensor
• Temperature of medium
  -20 °C ... 85 °C
• Analog output
  0 - 10 V
• DC operating voltage range
  15 V ... 35 V
• Type of mounting
  With internal thread With accessories
• Electrical connection
  5-pin Round design
• Displayable unit(s)
  MPa psi
• Setting options
  Via display and pushbuttons
• Corrosion resistance class (CRC)
  4 - Particularly high corrosion stress
Degree of protection
IP65 IP67
Certification
RCM compliance mark c UL us - Listed (OL)
Pressure measuring range end value
50 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
Max. output current
250 mA
Short-circuit protection
yes
Rise time
3 ms
Product weight
230 g
Housing material
ABS High-alloy stainless steel
Setting range threshold value
0.5 % ... 100 %
Type code
SPAW
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Pressure measuring range initial value
0 bar
Accuracy in ± % FS
1 %FS
Switching output
2xNPN
Switching function
Freely programmable
Pneumatic connection
Internal thread G1/4
Display type
4-character alphanumeric LED display
Protection against tampering
PIN code
