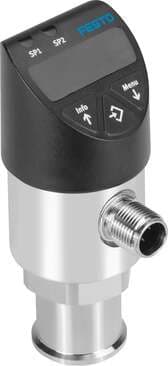

8022831 Festo Pressure Sensors

Product Details

• Symbol
  00995380
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Measured variable
  Relative pressure
• Temperature of medium
  -20 °C ... 85 °C
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Max. overload pressure
  20 bar
• Accuracy in ± % FS
  1 %FS
• Rise time
  3 ms
• Electrical connection
  5-pin Round design
• Materials in contact with the media
  High-alloy stainless steel
• Displayable unit(s)
  MPa psi
• Type code
  SPAW
• Method of measurement
  Metal thin-film pressure sensor
• Ambient temperature
  0 °C ... 80 °C
• Switching output
  2xNPN
• DC operating voltage range
  15 V ... 35 V
• Type of mounting
  With internal thread With accessories
• Switching status indication
  LED red
• Setting range hysteresis
  0.5 % ... 99.5 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
Pressure measuring range initial value
-1 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
Switching function
Freely programmable
Analog output
0 - 10 V
Housing material
ABS High-alloy stainless steel
Setting options
Via display and pushbuttons
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Pressure measuring range end value
10 bar
Repetition accuracy in ± %FS
0.15 %FS
Max. output current
250 mA
Pneumatic connection
Internal thread G1/4
Display type
4-character alphanumeric LED display
Protection against tampering
PIN code
Switching element function
Switchable
Short-circuit protection
yes
Reverse polarity protection
for operating voltage
Product weight
230 g
Setting range threshold value
0.5 % ... 100 %
Degree of protection
IP65 IP67
