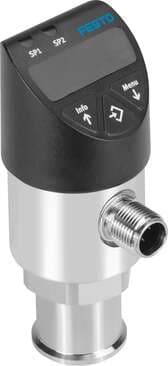

8022830 Festo Pressure Sensors

Product Details

• CE marking (see declaration of conformity)
  As per EU EMC directive
• Method of measurement
  Piezoresistive pressure sensor
• Accuracy in ± % FS
  1 %FS
• Ambient temperature
  0 °C ... 80 °C
• Max. output current
  250 mA
• Rise time
  3 ms
• Reverse polarity protection
  for operating voltage
• Pneumatic connection
  Internal thread G1/4
• Housing material
  ABS High-alloy stainless steel
• Protection against tampering
  PIN code
• Corrosion resistance class (CRC)
  4 - Particularly high corrosion stress
• Measured variable
  Relative pressure
• Max. overload pressure
  2 bar
• Repetition accuracy in ± %FS
  0.15 %FS
• Analog output
  0 - 10 V
• Type of mounting
  With internal thread With accessories
• Setting options
  Via display and pushbuttons
• Setting range threshold value
  0.5 % ... 100 %
• Type code
  SPAW
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
Pressure measuring range end value
1 bar
Temperature of medium
-20 °C ... 85 °C
Switching function
Freely programmable
Electrical connection
5-pin Round design
Materials in contact with the media
High-alloy stainless steel
Switching status indication
LED red
Setting range hysteresis
0.5 % ... 99.5 %
Symbol
00995380
Pressure measuring range initial value
-1 bar
Switching element function
Switchable
Short-circuit protection
yes
Product weight
230 g
Displayable unit(s)
MPa psi
Certification
RCM compliance mark c UL us - Listed (OL)
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
Switching output
2xNPN
DC operating voltage range
15 V ... 35 V
Display type
4-character alphanumeric LED display
Degree of protection
IP65 IP67
