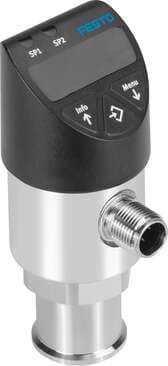

8022812 Festo Pressure Sensors

Product Details

• Symbol
  00995379
• Measured variable
  Relative pressure
• Temperature of medium
  -20 °C ... 85 °C
• Repetition accuracy in ± %FS
  0.15 %FS
• Analog output
  4 - 20 mA
• Product weight
  230 g
• Setting options
  Via display and pushbuttons
• Setting range hysteresis
  0.5 % ... 99.5 %
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Operating medium
  Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
• Accuracy in ± % FS
  1 %FS
• Switching element function
  Switchable
• Rise time
  3 ms
• Mounting position
  Any
• Display type
  4-character alphanumeric LED display
• Protection against tampering
  PIN code
• Corrosion resistance class (CRC)
  4 - Particularly high corrosion stress
• Max. overload pressure
  2 bar
• Switching output
  2xNPN
DC operating voltage range
15 V ... 35 V
Type of mounting
With internal thread With accessories
Materials in contact with the media
High-alloy stainless steel
Switching status indication
LED red
Type code
SPAW
Method of measurement
Piezoresistive pressure sensor
Pressure measuring range initial value
-1 bar
Switching function
Freely programmable
Max. output current
250 mA
Reverse polarity protection
for operating voltage
Pneumatic connection
Internal thread G1/4
Displayable unit(s)
MPa psi
Degree of protection
IP65 IP67
CE marking (see declaration of conformity)
As per EU EMC directive
Pressure measuring range end value
1 bar
Ambient temperature
0 °C ... 80 °C
Short-circuit protection
yes
Electrical connection
5-pin Round design
Housing material
ABS High-alloy stainless steel
Setting range threshold value
0.5 % ... 100 %
