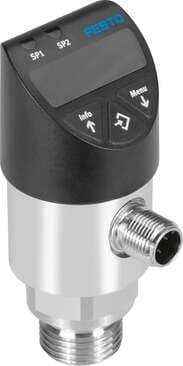

8022810 Festo Pressure Sensors

Product Details

• Pressure measuring range end value
  50 bar
• Repetition accuracy in ± %FS
  0.15 %FS
• DC operating voltage range
  15 V ... 35 V
• Housing material
  ABS High-alloy stainless steel
• Displayable unit(s)
  MPa psi
• Symbol
  00995378
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Accuracy in ± % FS
  1 %FS
• Switching output
  2xPNP
• Rise time
  3 ms
• Type of mounting
  With external thread
• Sealing ring material
  NBR
• Setting range threshold value
  0.5 % ... 100 %
• Type code
  SPAW
• Method of measurement
  Metal thin-film pressure sensor
• Operating medium
  Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
• Switching function
  Freely programmable
• Max. output current
  250 mA
• Short-circuit protection
  yes
• Pneumatic connection
  External thread G1/2
Product weight
230 g
Protection against tampering
PIN code
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Certification
RCM compliance mark c UL us - Listed (OL)
Measured variable
Relative pressure
Max. overload pressure
100 bar
Ambient temperature
0 °C ... 80 °C
Switching element function
Switchable
Reverse polarity protection
for operating voltage
Mounting position
Any
Materials in contact with the media
High-alloy stainless steel
Setting options
Via display and pushbuttons
Degree of protection
IP65 IP67
CE marking (see declaration of conformity)
As per EU EMC directive
Pressure measuring range initial value
0 bar
Temperature of medium
-20 °C ... 85 °C
Analog output
0 - 10 V
Electrical connection
5-pin Round design
Display type
4-character alphanumeric LED display
Switching status indication
LED red
Setting range hysteresis
0.5 % ... 99.5 %
