8022767 Festo Pressure Sensors

8022767 on Powermatic Associates
Festo

Part#:8022767

Alt. Part#:SPAW-B2R-G12M-2N-M12

Manufacturer:Festo

Category:Pressure Sensors

Product Lifecycle:Active

Product description

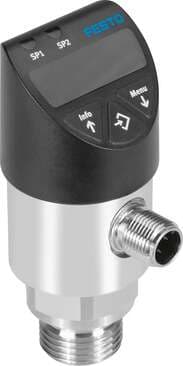

pressure sensor SPAW-B2R-G12M-2N-M12 For measuring media pressures, pressure measuring range between -1 and +1 bar, pneumatic connection male thread G1/2. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU

Product Details

  • Symbol
    00991161
  • Measured variable
    Relative pressure
  • Max. overload pressure
    2 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
  • Switching element function
    Switchable
  • DC operating voltage range
    15 V ... 35 V
  • Housing material
    ABS High-alloy stainless steel
  • Display type
    4-character alphanumeric LED display
  • Setting range threshold value
    0.5 % ... 100 %
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Type code
    SPAW
  • Method of measurement
    Piezoresistive pressure sensor
  • Temperature of medium
    -20 °C ... 85 °C
  • Switching output
    2xNPN
  • Short-circuit protection
    yes
  • Mounting position
    Any
  • Pneumatic connection
    External thread G1/2
  • Sealing ring material
    NBR
  • Protection against tampering
    PIN code
  • Degree of protection
    IP65 IP67
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Pressure measuring range initial value
    -1 bar
  • Switching function
    Freely programmable
  • Rise time
    3 ms
  • Type of mounting
    With external thread
  • Setting options
    Via display and pushbuttons
  • Ambient temperature
    0 °C ... 80 °C
  • Repetition accuracy in ± %FS
    0.15 %FS
  • Reverse polarity protection
    for operating voltage
  • Materials in contact with the media
    High-alloy stainless steel
  • Displayable unit(s)
    MPa psi
  • Setting range hysteresis
    0.5 % ... 99.5 %
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Pressure measuring range end value
    1 bar
  • Accuracy in ± % FS
    1 %FS
  • Max. output current
    250 mA
  • Electrical connection
    4-pin Round design
  • Product weight
    230 g
  • Switching status indication
    LED red

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
