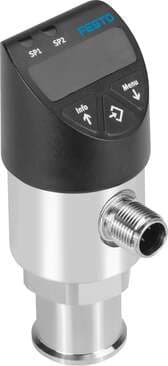

8022762 Festo Pressure Sensors

Product Details

• Symbol
  00991161
• Measured variable
  Relative pressure
• Pressure measuring range initial value
  0 bar
• Switching element function
  Switchable
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Max. overload pressure
  20 bar
• Ambient temperature
  0 °C ... 80 °C
• Reverse polarity protection
  for operating voltage
• Pneumatic connection
  Internal thread G1/4
• Materials in contact with the media
  High-alloy stainless steel
• Setting range hysteresis
  0.5 % ... 99.5 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Temperature of medium
  -20 °C ... 85 °C
• Accuracy in ± % FS
  1 %FS
• Max. output current
  250 mA
• Mounting position
  Any
• Product weight
  230 g
• Switching status indication
  LED red
• Corrosion resistance class (CRC)
  4 - Particularly high corrosion stress
Type code
SPAW
Method of measurement
Metal thin-film pressure sensor
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
Switching output
2xNPN
Rise time
3 ms
Short-circuit protection
yes
Display type
4-character alphanumeric LED display
Setting options
Via display and pushbuttons
Pressure measuring range end value
10 bar
Repetition accuracy in ± %FS
0.15 %FS
Switching function
Freely programmable
Electrical connection
4-pin Round design
Housing material
ABS High-alloy stainless steel
Protection against tampering
PIN code
DC operating voltage range
15 V ... 35 V
Type of mounting
With internal thread With accessories
Displayable unit(s)
MPa psi
Setting range threshold value
0.5 % ... 100 %
Degree of protection
IP65 IP67
