8005069 Festo Quarter Turn Actuators

Name: 8005069
Brand: Festo

Part#:8005069

Manufacturer:Festo

Alt. Part#:DAPS-0960-090-RS2-F1216-MW

Product Lifecycle:Active

Get a quick Quote!

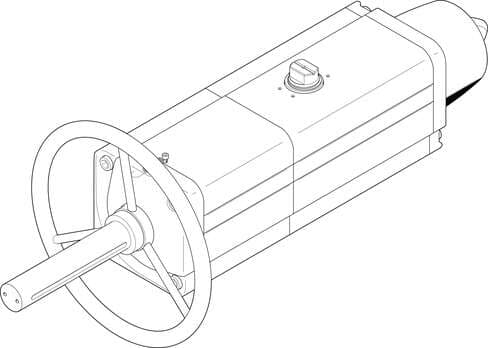

semi-rotary drive DAPS-0960-090-RS2-F1216-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator: 0960, Flange hole pattern: (* F12, * F16), Swivel angle: 92 deg, Shaft connection de

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8005069 Festo price in the box on the right side or send a quick quote.

Product Details

Swivel angle
92 deg
Information on the end-position adjusting range
One end position optionally adjustable
Design
Scotch yoke system
Flange hole pattern
F12 F16
Type code
DAPS
Mode of operation
Single-acting
Symbol
00991266
Nominal operating pressure
5.6 bar
Explosive ambient temperature
-50°C <= Ta <= +60°C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Spring return torque with 50° swivel angle
300 Nm
Cover material
Wrought aluminum alloy
Shaft material
High-alloy steel
Depth shaft connection
48.5 mm
Cushioning
No cushioning
Safety integrity level (SIL)
Up to SIL 2 high demand mode Up to SIL 2 low demand mode
ATEX category for dust
II 2D
Ambient temperature
-20 °C ... 80 °C
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Spring return torque with 90° swivel angle
600 Nm

Note on materials

RoHS-compliant

Housing material

Wrought aluminum alloy

Mounting position

Any

Position sensing

None

Connection pressure for spring force

3.5 bar

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Torque at nominal operating pressure and 0° swivel angle

1200 Nm

Torque at nominal operating pressure and 90° swivel angle

1000 Nm

Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°

41.3 l

Material of screws

High-alloy steel

Size of valve actuator

0960

Standard connection for valve

ISO 5211

Closing direction

Clockwise closing

ATEX category gas

II 2G

Type of (ignition) protection for dust

Ex h IIIC T85°C...T200°C Db X

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Spring return torque at 0° swivel angle

400 Nm

Shaft connection

T46

Pneumatic connection

G1/4

Material number for shaft

1.4305

Valve connection conforms to standard

VDI/VDE 3845 (NAMUR)

Operating pressure

3.5 bar ... 8.4 bar

Type of ignition protection for gas

Ex h IIC T6...T3 Gb X

CE marking (see declaration of conformity)

as per EU explosion protection directive (ATEX)

Torque at nominal operating pressure and 50° swivel angle

660 Nm

Spring force

Product weight

50600 g

Seals material

FPM PUR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
