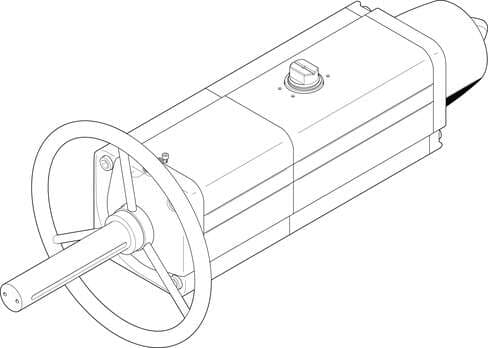

8005065 Festo Quarter Turn Actuators

Product Details

• Information on the end-position adjusting range
  One end position optionally adjustable
• Standard connection for valve
  ISO 5211
• Safety integrity level (SIL)
  Up to SIL 2 high demand mode Up to SIL 2 low demand mode
• ATEX category gas
  II 2G
• Swivel angle
  92 deg
• Cushioning
  No cushioning
• Closing direction
  Clockwise closing
• Position sensing
  None
• Nominal operating pressure
  5.6 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• CE marking (see declaration of conformity)
  as per EU explosion protection directive (ATEX)
• Depth shaft connection
  38.5 mm
• Mounting position
  Any
• Connection pressure for spring force
  5.6 bar
• ATEX category for dust
  II 2D
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Torque at nominal operating pressure and 90° swivel angle
  480 Nm
• Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
  29.4 l
• Cover material
  Wrought aluminum alloy
Flange hole pattern
F14
Mode of operation
Single-acting
Symbol
00991266
Operating pressure
5.6 bar ... 8.4 bar
Explosive ambient temperature
-50°C <= Ta <= +60°C
Torque at nominal operating pressure and 0° swivel angle
720 Nm
Spring force
4
Note on materials
RoHS-compliant
Material number for shaft
1.4305
Size of valve actuator
0720
Type code
DAPS
Design
Scotch yoke system
Valve connection conforms to standard
VDI/VDE 3845 (NAMUR)
Type of ignition protection for gas
Ex h IIC T6...T3 Gb X
Ambient temperature
-20 °C ... 80 °C
Spring return torque at 0° swivel angle
480 Nm
Pneumatic connection
G1/4
Housing material
Wrought aluminum alloy
Type of (ignition) protection for dust
Ex h IIIC T85°C...T200°C Db X
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Spring return torque with 50° swivel angle
360 Nm
Torque at nominal operating pressure and 50° swivel angle
360 Nm
Shaft connection
T36
Seals material
FPM PUR
Shaft material
High-alloy steel
Spring return torque with 90° swivel angle
720 Nm
Product weight
38800 g
Material of screws
High-alloy steel
