8005054 Festo Quarter Turn Actuators
Part#:8005054
Alt. Part#:DAPS-0480-090-RS3-F1012-MW
Manufacturer:Festo
Category:Quarter Turn Actuators
Product Lifecycle:Active
Product description

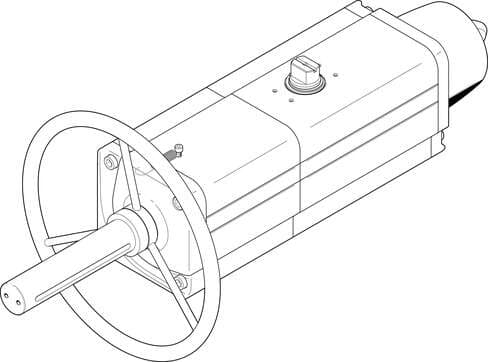

semi-rotary drive DAPS-0480-090-RS3-F1012-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator: 0480, Flange hole pattern: (* F10, * F12), Swivel angle: 92 deg, Shaft connection de
Product Details
- Flange hole pattern F10 F12
- Type code DAPS
- Position sensing None
- Connection pressure for spring force 4.2 bar
- ATEX category for dust II 2D
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Torque at nominal operating pressure and 90° swivel angle 440 Nm
- Spring force 3
- Pneumatic connection G1/4
- Note on materials RoHS-compliant
- Material number for shaft 1.4305
- Mounting position Any
- Closing direction Clockwise closing
- ATEX category gas II 2G
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Spring return torque with 50° swivel angle 180 Nm
- Product weight 28100 g
- Housing material Wrought aluminum alloy
- Swivel angle 92 deg
- Information on the end-position adjusting range One end position optionally adjustable
- Operating pressure 4.2 bar ... 8.4 bar
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- Ambient temperature -20 °C ... 80 °C
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Torque at nominal operating pressure and 50° swivel angle 300 Nm
- Spring return torque with 90° swivel angle 360 Nm
- Seals material FPM PUR
- Material of screws High-alloy steel
- Size of valve actuator 0480
- Cushioning No cushioning
- Design Scotch yoke system
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- Symbol 00991266
- Explosive ambient temperature -50°C <= Ta <= +60°C
- Torque at nominal operating pressure and 0° swivel angle 560 Nm
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 19.6 l
- Cover material Wrought aluminum alloy
- Depth shaft connection 38.5 mm
- Standard connection for valve ISO 5211
- Mode of operation Single-acting
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- Nominal operating pressure 5.6 bar
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Spring return torque at 0° swivel angle 240 Nm
- Shaft connection T36
- Shaft material High-alloy steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
