8005052 Festo Quarter Turn Actuators

Name: 8005052
Brand: Festo

Part#:8005052

Manufacturer:Festo

Alt. Part#:DAPS-0480-090-RS2-F1012-MW

Product Lifecycle:Active

Get a quick Quote!

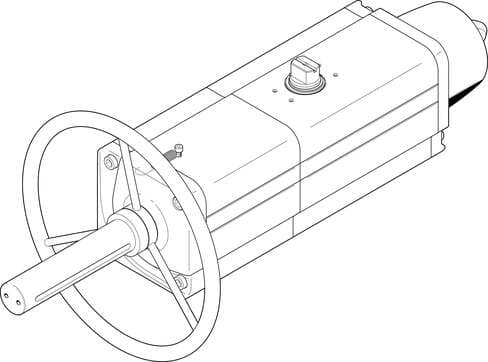

semi-rotary drive DAPS-0480-090-RS2-F1012-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator: 0480, Flange hole pattern: (* F10, * F12), Swivel angle: 92 deg, Shaft connection de

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8005052 Festo price in the box on the right side or send a quick quote.

Product Details

Information on the end-position adjusting range
One end position optionally adjustable
Mounting position
Any
Safety integrity level (SIL)
Up to SIL 2 high demand mode Up to SIL 2 low demand mode
Type of ignition protection for gas
Ex h IIC T6...T3 Gb X
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Torque at nominal operating pressure and 90° swivel angle
500 Nm
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
19.6 l
Note on materials
RoHS-compliant
Shaft material
High-alloy steel
Standard connection for valve
ISO 5211
Design
Scotch yoke system
Closing direction
Clockwise closing
Operating pressure
3.5 bar ... 8.4 bar
ATEX category gas
II 2G
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Torque at nominal operating pressure and 50° swivel angle
330 Nm
Spring return torque with 90° swivel angle
300 Nm
Product weight
28100 g
Shaft connection
T36

Material of screws

High-alloy steel

Flange hole pattern

F10 F12

Cushioning

No cushioning

Symbol

00991266

Valve connection conforms to standard

VDI/VDE 3845 (NAMUR)

ATEX category for dust

II 2D

Explosive ambient temperature

-50°C <= Ta <= +60°C

Torque at nominal operating pressure and 0° swivel angle

600 Nm

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Spring return torque with 50° swivel angle

150 Nm

Cover material

Wrought aluminum alloy

Material number for shaft

1.4305

Size of valve actuator

0480

Swivel angle

92 deg

Type code

DAPS

Position sensing

None

Nominal operating pressure

5.6 bar

Housing material

Wrought aluminum alloy

Depth shaft connection

38.5 mm

Mode of operation

Single-acting

Connection pressure for spring force

3.5 bar

Type of (ignition) protection for dust

Ex h IIIC T85°C...T200°C Db X

Ambient temperature

-20 °C ... 80 °C

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Spring return torque at 0° swivel angle

200 Nm

Spring force

Pneumatic connection

G1/4

Seals material

FPM PUR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
