8005003 Festo Quarter Turn Actuators

Name: 8005003
Brand: Festo

Part#:8005003

Manufacturer:Festo

Alt. Part#:DAPS-0180-090-R-F0710-MW

Product Lifecycle:Active

Get a quick Quote!

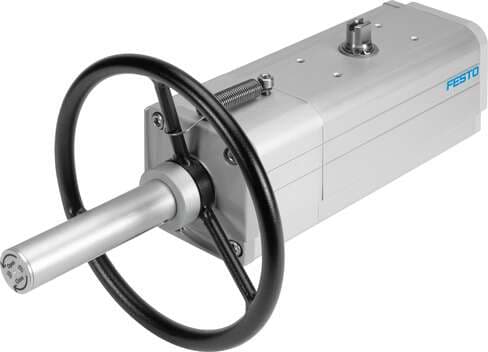

semi-rotary drive DAPS-0180-090-R-F0710-MW double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator: 0180, Flange hole pattern: (* F07, * F10), Swivel angle: 92 deg, Shaft connection dept

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8005003 Festo price in the box on the right side or send a quick quote.

Product Details

Swivel angle
92 deg
Cushioning
No cushioning
Design
Scotch yoke system
Safety integrity level (SIL)
Up to SIL 2 high demand mode Up to SIL 2 low demand mode
Operating pressure
1 bar ... 8.4 bar
Ambient temperature
-20 °C ... 80 °C
Size of valve actuator
0180
Type code
DAPS
Position sensing
None
Type of ignition protection for gas
Ex h IIC T6...T3 Gb X
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Torque at nominal operating pressure and 90° swivel angle
135 Nm
Shaft connection
T22
Housing material
Wrought aluminum alloy
Material of screws
High-alloy steel
Flange hole pattern
F07 F10
Standard connection for valve
ISO 5211
Nominal operating pressure
5.6 bar
Explosive ambient temperature
-20°C <= Ta <= +60°C
Torque at nominal operating pressure and 0° swivel angle
180 Nm

Torque at nominal operating pressure and 50° swivel angle

90 Nm

Seals material

FPM PUR

Material number for shaft

1.4305

Depth shaft connection

24.8 mm

Mounting position

Any

Symbol

00991265

ATEX category gas

II 2G

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

CE marking (see declaration of conformity)

as per EU explosion protection directive (ATEX)

Pneumatic connection

G1/8

Shaft material

High-alloy steel

Mode of operation

Double-acting

Closing direction

Clockwise closing

Valve connection conforms to standard

VDI/VDE 3845 (NAMUR)

Type of (ignition) protection for dust

Ex h IIIC T85°C...T200°C Db X

ATEX category for dust

II 2D

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Product weight

6000 g

Cover material

Wrought aluminum alloy

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°

8.4 l

Note on materials

RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
