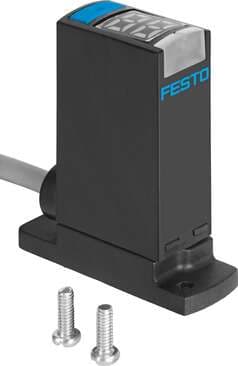

8001449 Festo Pressure Sensors

Product Details

• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Measured variable
  Relative pressure
• Max. overload pressure
  15 bar
• Switching output
  PNP/NPN switchable
• Switching element function
  N/C contact Switchable
• Protocol
  IO-Link®
• IO-Link®, SIO mode support
  Yes
• IO-Link®, process data content IN
  14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
• Reverse polarity protection
  for all electrical connections
• Mounting position
  Any
• Display type
  LED display 2-digit
• Protection against tampering
  PIN code
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Note on materials
  RoHS-compliant
• Pressure measuring range end value
  10 bar
• Ambient temperature
  0 °C ... 50 °C
• Repetition accuracy in ± %FS
  0.3 %FS
• Short-circuit protection
  yes
• IO-Link®, process data width OUT
  0 Byte
• DC operating voltage range
  18 V ... 30 V
Sealing ring material
NBR
Degree of protection
IP40
Type code
SPAE
Certificate issuing authority
UL E322346
Pressure measuring range initial value
0 bar
Information on operating and pilot media
Operation with oil lubrication possible
Switching function
Freely programmable
Max. output current
100 mA
IO-Link®, protocol version
Device V 1.1
IO-Link®, port class
A
IO-Link®, minimum cycle time
3 ms
Cable length
2.5 m
Housing material
PA-reinforced
Setting options
IO-Link® Via display and pushbuttons
KC characters
KC EMC
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
ADC resolution
10 bit
Display range start value
0 %FS
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, data memory required
500 byte
Type of mounting
With through-hole and screw
Pneumatic connection
Flange
Displayable unit(s)
%FS
Setting range threshold value
1 % ... 98 %
Symbol
00995430
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Method of measurement
Piezoresistive pressure sensor with display
Temperature of medium
0 °C ... 50 °C
Temperature co-efficient in ± %FS/K
0.05 %FS/K
Accuracy in ± % FS
1.5 %FS
Display range end value
99 %FS
IO-Link®, profile
Smart sensor profile
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data width IN
2 Byte
Electrical connection
3-wire Open end
Product weight
40 g
Switching status indication
LED yellow
