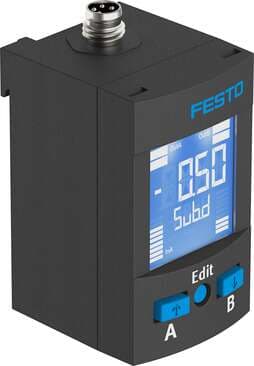

8001219 Festo Pressure Sensors

Product Details

• Type code
  SPAU
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Measured variable
  Relative pressure
• Pressure measuring range initial value
  -1 bar
• Information on operating and pilot media
  Operation with oil lubrication possible
• Switching function
  Freely programmable
• Analog output
  0 - 10 V 1 - 5 V
• Protocol
  IO-Link®
• IO-Link®, SIO mode support
  Yes
• IO-Link®, data memory required
  500 byte
• Type of mounting
  With H-rail
• Displayable unit(s)
  MPa psi
• Degree of protection
  IP65 IP67
• Electrical connection for input 1, connection pattern
  00991171
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Max. overload pressure
  5 bar
• Repetition accuracy in ± %FS
  0.3 %FS
• Rise time
  3 ms
• IO-Link®, protocol version
  Device V 1.1
• IO-Link®, process data width IN
  2 Byte
IO-Link®, minimum cycle time
3 ms
Pneumatic connection
G1/8
Setting range hysteresis
0 % ... 90 %
Electrical connection 1, number of pins/wires
4
Symbol
00995410
Pressure measuring range end value
1 bar
ADC resolution
12 bit
Accuracy in ± % FS
1.5 %FS
Max. output current
100 mA
Short-circuit protection
yes
IO-Link®, profile
Smart sensor profile
IO-Link®, process data width OUT
0 Byte
Reverse polarity protection
for all electrical connections
Display type
Illuminated LCD
Protection against tampering
IO-Link® PIN code
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
KC characters
KC EMC
Method of measurement
Piezoresistive pressure sensor
Ambient temperature
0 °C ... 50 °C
Switching output
2 x PNP or 2 x NPN switchable
Max. load resistance of current output
500 Ohm
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, port class
A
Mounting position
Any
Setting options
IO-Link® Via display and pushbuttons
Electrical connection 1, connection type
Plug
Note on materials
RoHS-compliant
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Temperature of medium
0 °C ... 50 °C
Temperature co-efficient in ± %FS/K
0.05 %FS/K
Switching element function
N/C contact/N/O contact switchable
Min. load resistance of voltage output
10 kOhm
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, process data content IN
14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
DC operating voltage range
20 V ... 30 V
Product weight
70 g
Setting range threshold value
0 % ... 100 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
