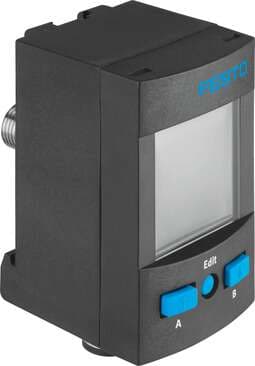

8001203 Festo Pressure Sensors

Product Details

• Electrical connection 1, connection technology
  M8x1 A-coded as per EN 61076-2-104
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Pressure measuring range initial value
  0 bar
• KC characters
  KC EMC
• Electrical connection 1, connection type
  Plug
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Note on materials
  RoHS-compliant
• Pressure measuring range end value
  10 bar
• Information on operating and pilot media
  Operation with oil lubrication possible
• Repetition accuracy in ± %FS
  0.3 %FS
• Switching element function
  N/C contact/N/O contact switchable
• Min. load resistance of voltage output
  10 kOhm
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, process data width IN
  2 Byte
• IO-Link®, minimum cycle time
  3 ms
• Product weight
  80 g
• Setting range hysteresis
  0 % ... 90 %
• Type code
  SPAU
• Max. load resistance of current output
  500 Ohm
• Protocol
  IO-Link®
IO-Link®, port class
A
IO-Link®, process data content IN
14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
Protection against tampering
IO-Link® PIN code
Setting range threshold value
0 % ... 100 %
Electrical connection for input 1, connection pattern
00991171
Electrical connection 1, number of pins/wires
4
Measured variable
Relative pressure
Max. overload pressure
15 bar
Ambient temperature
0 °C ... 50 °C
Switching output
2 x PNP or 2 x NPN switchable
Analog output
0 - 10 V 1 - 5 V
IO-Link®, communication mode
COM2 (38,4 kBd)
Reverse polarity protection
for all electrical connections
Type of mounting
With thread
Displayable unit(s)
MPa psi
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Symbol
00995410
Method of measurement
Piezoresistive pressure sensor
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
ADC resolution
12 bit
Temperature co-efficient in ± %FS/K
0.05 %FS/K
Switching function
Freely programmable
IO-Link®, protocol version
Device V 1.1
IO-Link®, SIO mode support
Yes
DC operating voltage range
20 V ... 30 V
Mounting position
Any
Display type
Illuminated LCD
Degree of protection
IP65 IP67
Temperature of medium
0 °C ... 50 °C
Accuracy in ± % FS
1.5 %FS
Max. output current
100 mA
Rise time
3 ms
Short-circuit protection
yes
IO-Link®, profile
Smart sensor profile
IO-Link®, process data width OUT
0 Byte
IO-Link®, data memory required
500 byte
Pneumatic connection
R1/8
Setting options
IO-Link® Via display and pushbuttons
