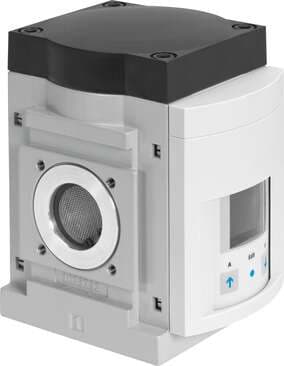

573354 Festo Flow Sensors

Product Details

• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Flow measuring range end value
  10000 l/min
• Ambient temperature
  0 °C ... 50 °C
• Switching function
  Window comparator or threshold value comparator, adjustable
• Output characteristic curve initial value
  4 mA
• Type of mounting
  Line installation
• Pressure drop
  < 100 mbar
• Type code
  SFAM
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Note on materials
  RoHS-compliant
• Operating pressure
  0 bar ... 16 bar
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Switching output
  2x PNP or 2x NPN adjustable
• Reverse polarity protection
  for all electrical connections
• Display type
  Illuminated LCD blue
• Degree of protection
  IP65
• Measuring principle
  Thermal
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
• Accuracy of flow rate
  ± (3% o.m.v. + 0.3% FS)
• Zero point repetition accuracy in ± %FS
  0.2 %FS
Analog output
4 - 20 mA
Max. output current
100 mA
Max. load resistance of current output
500 Ohm
End value output characteristic curve
20 mA
Mounting position
Horizontal
Product weight
2750 g
KC characters
KC EMC
Measured variable
Flow rate Consumption
Flow measuring range start value
100 l/min
Temperature of medium
0 °C ... 50 °C
Temperature co-efficient margin in ± %FS/K
typ. 0. 1%FS/K
Switching element function
N/C contact N/O contact
Flow characteristic curve, end value
10000 l/min
Short-circuit protection
yes
Pneumatic connection
G1 1/2
Displayable unit(s)
l scfm
Certificate issuing authority
UL E322346
Flow direction
Unidirectional From left to right
Nominal temperature
23 °C
Pressure influence of margin in ±%FS/bar
0.5 %FS/b.
Flow characteristic curve, start value
0 l/min
DC operating voltage range
15 V ... 30 V
Electrical connection
5-pin Plug, straight
Housing material
Die-cast aluminum PA-reinforced
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
