570953 Festo Electrical Connectors

570953 on Powermatic Associates
Festo

Part#:570953

Alt. Part#:NECU-S-M12G4-P1-IS

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

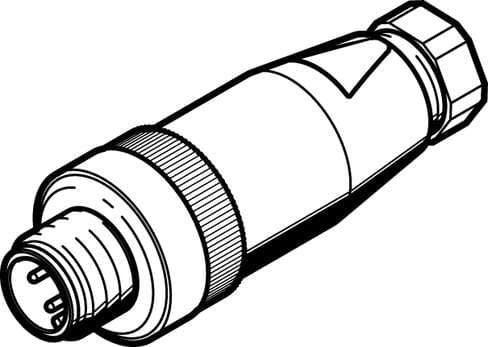

plug NECU-S-M12G4-P1-IS Based on the standard: (* EN 61076-2-101, * EN 61984), Connection frequency: 50, Mounting type: with threaded sleeve, Assembly position: Any, Product weight: 17 g

Product Details

  • Contact durability
    50
  • Electrical connection
    4-pin Straight plug/screw terminal
  • Ambient temperature
    -25 °C ... 85 °C
  • Material of union nut
    PA
  • Based on norm
    EN 61076-2-101 EN 61984
  • Product weight
    17 g
  • Surge resistance
    2.5 kV
  • Approved cable diameter
    4 mm ... 6 mm
  • Cable fitting
    Pg7
  • Contamination level
    3
  • Mounting position
    Any
  • Explosion prevention and protection
    Observe the information on the certificate Zone 22 (ATEX)
  • DC operating voltage range
    0 V ... 30 V
  • Connection cross section
    0.75 mm²
  • Housing material
    PA
  • Type code
    NECU
  • Type of mounting
    With threaded sleeve
  • Current rating at 40°C
    4 A
  • Degree of protection
    IP65 IP67
  • Note on materials
    RoHS-compliant
  • Material of pin contacts
    Brass White bronze, coated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
