567467 Festo Pressure Sensors

567467 on Powermatic Associates
Festo

Part#:567467

Alt. Part#:SDE5-D10-FP-T14E-P-M8

Manufacturer:Festo

Category:Pressure Sensors

Product Lifecycle:Active

Product description

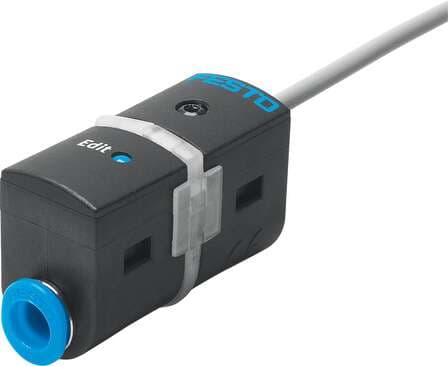

pressure sensor SDE5-D10-FP-T14E-P-M8 With M8 plug version. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EMV, Materials

Product Details

  • Type code
    SDE5
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU RoHS directive
  • Symbol
    00991164
  • Pressure measuring range initial value
    0 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Repetition accuracy in ± %FS
    0.3 %FS
  • Switching element function
    Switchable
  • Electrical connection
    3-pin Round design
  • Product weight
    19 g
  • Degree of protection
    IP40
  • KC characters
    KC EMC
  • Note on materials
    RoHS-compliant
  • Measured variable
    Relative pressure
  • Temperature co-efficient in ± %FS/K
    0.05 %FS/K
  • Switching function
    Freely programmable
  • Reverse polarity protection
    for all electrical connections
  • Pneumatic connection
    QS-1/4
  • Setting range threshold value
    0 % ... 100 %
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Method of measurement
    Piezoresistive pressure sensor
  • Ambient temperature
    0 °C ... 50 °C
  • DC operating voltage range
    15 V ... 30 V
  • Switching status indication
    LED yellow
  • Pressure measuring range end value
    10 bar
  • Temperature of medium
    0 °C ... 50 °C
  • Switching output
    PNP
  • Short-circuit protection
    yes
  • Type of mounting
    With accessories
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Max. output current
    100 mA
  • Housing material
    PA POM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
