564946 Festo Electrical Connectors

564946 on Powermatic Associates
Festo

Part#:564946

Alt. Part#:NECU-S-M12G3-HX-Q7

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

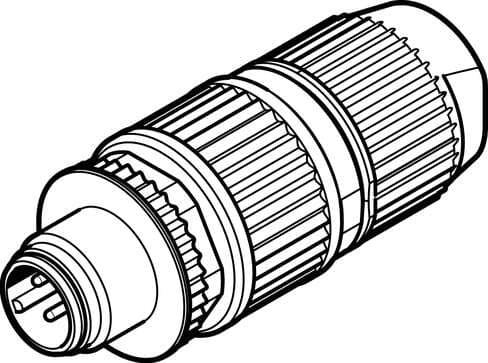

plug NECU-S-M12G3-HX-Q7 Based on the standard: (* EN 61076-2-101, * EN 61984), Authorisation: c UL us - Recognized (OL), Connection frequency: 3, Product weight: 32,8 g, Electrical connection: (* 3-pin, * A-coded, * M12x1, * Straight plug / insulation dis

Product Details

  • Based on norm
    EN 61076-2-101 EN 61984
  • Electrical connection
    3-pin Straight plug/insulation displacement connector
  • Individual wire diameter
    ≥ 0.1 mm
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Material of screw-type lock
    Die-cast zinc, nickel-plated
  • Contact durability
    3
  • Operating voltage range AC
    0 V ... 48 V
  • Connection cross section
    0.34 mm² ... 0.75 mm²
  • Contamination level
    3
  • Seals material
    FPM PUR
  • Certification
    c UL us - Recognized (OL)
  • DC operating voltage range
    0 V ... 48 V
  • Approved cable diameter
    4.7 mm ... 6 mm
  • Current rating at 40°C
    6 A
  • Material of pin contacts
    Gold-plated
  • Wire diameter
    1.6 mm ... 2 mm
  • Degree of protection
    IP65 IP67
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Type code
    NECU
  • Product weight
    32.8 g
  • Surge resistance
    0.8 kV
  • Ambient temperature
    -25 °C ... 85 °C
  • Housing material
    PA Nickel-plated
  • Permissible insulating sheath
    PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
