562676 Festo Couplings

562676 on Powermatic Associates
Festo

Part#:562676

Alt. Part#:EAMC-16-20-5-5

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

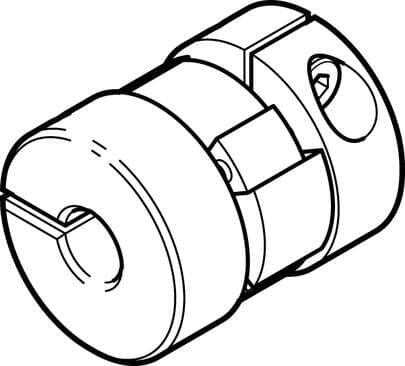

coupling EAMC-16-20-5-5 Holder diameter 1: 5 mm, Holder diameter 2: 5 mm, Size: 16, Nominal length: 20 mm, Assembly position: Any

Product Details

  • Diameter of holder 1
    5 mm
  • Type code
    EAMC
  • Diameter of holder 2
    5 mm
  • Max. rotational speed
    10000 1/min
  • Storage temperature
    -25 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Size
    16
  • Mounting position
    Any
  • Nominal length
    20 mm
  • Ambient temperature
    -25 °C ... 60 °C
  • Relative air humidity
    0 - 95 %
  • Mass moment of inertia
    0.28 kgmm²
  • Product weight
    8 g
  • Transferable torque
    1.1 Nm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
