562471 Festo Cable Assemblies

562471 on Powermatic Associates
Festo

Part#:562471

Alt. Part#:NEBV-M8W4L-E-2.5-LE2

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

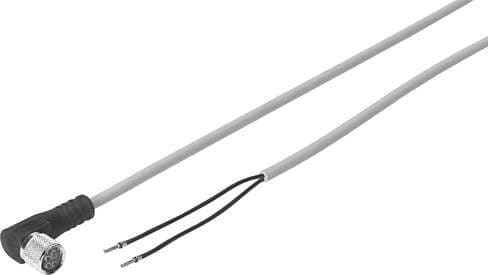

connecting cable NEBV-M8W4L-E-2.5-LE2 Conforms to standard: (* EN 61076-2-101, * ISO 20401), Operating status display: Yellow LED, Product weight: 45 g, Electrical connection: (* 4-pin / 2-wire, * Angled socket / cable, * M8x1), Operating voltage range DC

Product Details

  • Current rating at 40°C
    3 A
  • Degree of protection
    IP65 IP67
  • Note on materials
    RoHS-compliant
  • Insulating sheath material
    PVC
  • Type code
    NEBV
  • Electrical connection
    4-pin/2-wire M8x1
  • Cable length
    2.5 m
  • Cable design
    2 x 0.25 mm²
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Housing material
    TPE-U(PU)
  • Material of pin contacts
    Brass Gold-plated
  • Product weight
    45 g
  • Cable characteristic
    Suitable for energy chains
  • Ambient temperature
    -10 °C ... 50 °C
  • Switching status indication
    LED yellow
  • Min. cable bending radius
    35 mm
  • Material of cable sheath
    TPE-U(PUR)
  • Conforms to standard
    EN 61076-2-101 ISO 20401
  • DC operating voltage range
    20.4 V ... 26.4 V
  • Cable diameter
    3.3 mm
  • Wire ends
    Cable end sleeve

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

562471 Related Documents

562471 DataSheet.pdf
