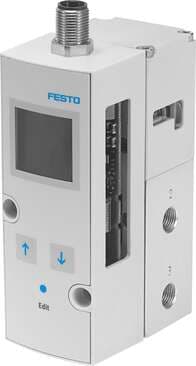

558345 Festo Proportional Valves

Product Details

• Reverse polarity protection
  for all electrical connections
• Valve function
  3-way proportional pressure control valve
• Inlet pressure 1
  0 bar ... 11 bar
• Residual ripple
  10 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Product weight
  400 g
• Pneumatic connection 2
  G1/8
• Exhaust nominal width
  4.5 mm
• Sealing principle
  Soft
• Pressure regulation range
  0.1 bar ... 10 bar
• Standard nominal flow rate
  1400 l/min
• Max. current consumption
  300 mA
• Duty cycle
  100%
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Degree of protection
  IP65
• Temperature coefficient
  0.04 %/K
• Note on materials
  RoHS-compliant
• Actuation type
  Electrical
• Reset method
  Mechanical spring
• Type of control
  Pilot-controlled
Max. electrical power consumption
7 W
Analog output signal range
0 - 10 V
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Linearity error FS
1 %
Type of mounting
Optionally: With accessories
Pneumatic connection 1
G1/8
KC characters
KC EMC
Type code
VPPM
Short-circuit protection
For all electrical connections
Design
Pilot-controlled diaphragm regulator
Safety instructions
VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Max. pressure hysteresis
0.05 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Temperature of medium
10 °C ... 50 °C
Repetition accuracy FS
0.5 %
Pneumatic connection 3
G1/8
Nominal width pressurization
6 mm
Mounting position
Any
Symbol
00995303
Display type
Back-lit LCD
DC operating voltage range
21.6 V ... 26.4 V
Switching output
NPN
Analog input signal range
0 - 10 V
Ambient temperature
0 °C ... 50 °C
Certification
RCM compliance mark c UL us - Listed (OL)
Electrical connection
8-pin Plug
Housing material
Wrought aluminum alloy Anodized

Related documents 558345 Specs
