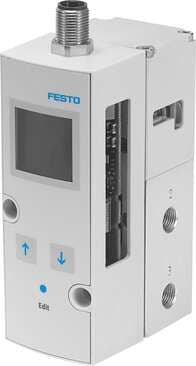

558343 Festo Proportional Valves

Product Details

• Sealing principle
  Soft
• Valve function
  3-way proportional pressure control valve
• Pressure regulation range
  0.06 bar ... 6 bar
• Residual ripple
  10 %
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Degree of protection
  IP65
• Type of mounting
  Optionally: With accessories
• Exhaust nominal width
  4.5 mm
• Design
  Pilot-controlled diaphragm regulator
• Reset method
  Mechanical spring
• Max. pressure hysteresis
  0.03 bar
• DC operating voltage range
  21.6 V ... 26.4 V
• Switching output
  PNP
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Ambient temperature
  0 °C ... 50 °C
• Product weight
  400 g
• KC characters
  KC EMC
• Actuation type
  Electrical
• Reverse polarity protection
  for all electrical connections
• Inlet pressure 1
  0 bar ... 8 bar
Max. electrical power consumption
7 W
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media
Operation with oil lubrication not possible
Certification
RCM compliance mark c UL us - Listed (OL)
Electrical connection
8-pin Plug
Pneumatic connection 3
1/8 NPT
Short-circuit protection
For all electrical connections
Nominal width pressurization
6 mm
Safety instructions
VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Display type
Back-lit LCD
Max. current consumption
300 mA
Analog input signal range
0 - 10 V
Linearity error FS
2 %
Temperature coefficient
0.04 %/K
Note on materials
RoHS-compliant
Type code
VPPM
Mounting position
Any
Symbol
00995303
Type of control
Pilot-controlled
Standard nominal flow rate
900 l/min
Analog output signal range
0 - 10 V
Temperature of medium
10 °C ... 50 °C
Repetition accuracy FS
0.5 %
Pneumatic connection 2
1/8 NPT
Pneumatic connection 1
1/8 NPT
Housing material
Wrought aluminum alloy Anodized

Related documents 558343 Specs
