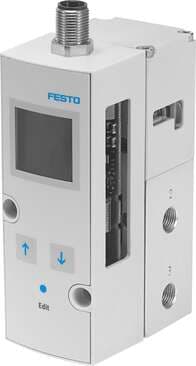

558339 Festo Proportional Valves

Product Details

• KC characters
  KC EMC
• Design
  Pilot-controlled diaphragm regulator
• Short-circuit protection
  For all electrical connections
• Type of control
  Pilot-controlled
• Max. pressure hysteresis
  0.03 bar
• Max. current consumption
  300 mA
• Switching output
  PNP
• Temperature of medium
  10 °C ... 50 °C
• Ambient temperature
  0 °C ... 50 °C
• Electrical connection
  8-pin Plug
• Pneumatic connection 3
  Sub-base
• Type code
  VPPM
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Display type
  Back-lit LCD
• Inlet pressure 1
  0 bar ... 8 bar
• DC operating voltage range
  21.6 V ... 26.4 V
• Residual ripple
  10 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Temperature coefficient
  0.04 %/K
• Pneumatic connection 2
  Sub-base
Exhaust nominal width
4.5 mm
Reverse polarity protection
for all electrical connections
Pressure regulation range
0.06 bar ... 6 bar
Max. electrical power consumption
7 W
Analog output signal range
0 - 10 V
Product weight
400 g
Type of mounting
Optionally: With accessories
Note on materials
RoHS-compliant
Nominal width pressurization
6 mm
Sealing principle
Soft
Mounting position
Any
Valve function
3-way proportional pressure control valve
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication not possible
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Linearity error FS
2 %
Pneumatic connection 1
Sub-base
Actuation type
Electrical
Symbol
00995303
Reset method
Mechanical spring
Standard nominal flow rate
900 l/min
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Analog input signal range
0 - 10 V
Degree of protection
IP65
Certification
RCM compliance mark c UL us - Listed (OL)
Repetition accuracy FS
0.5 %
Housing material
Wrought aluminum alloy Anodized
